W500X Interior Landscape / Aquascape Light
175W LED / 130°
Model No: KSW500X-
Plant / Coral Focused Light Spectrum
Flicker-free for animal welfare
High-Intensity Point Source LED
Low-Profile
DMX Controllable
Also Available with Other Optics
Separator
SPECIFICATIONS
| Beam Angle | 130° |
| Spectrum Type | AMZ: Plant Flourish & Growth TB: Coral Health & Growth |
| Control | Intensity (0%-100%), CCT |
| LED Source | DiCon Dense Matrix LED |
| AC Power Draw | 175W max |
| AC Input Voltage | 100 - 240V AC, 60Hz 100 - 277V AC (only with CLP) |
| Cooling | Fan Cooled |
| Operating Temperature | 32-104°F (0-40°C) |
| Fixture Weight | 1.4lb / 0.6kg |
| Power Supply Weight | 1.6lb / 0.7kg |
Separator
MECHANICAL FIGURES

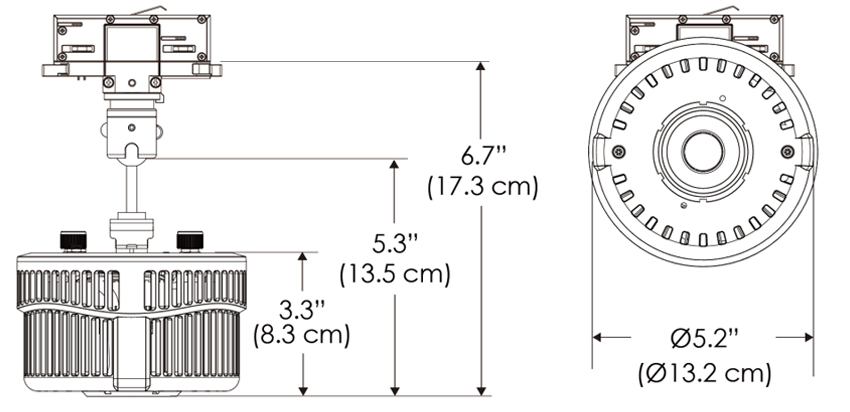

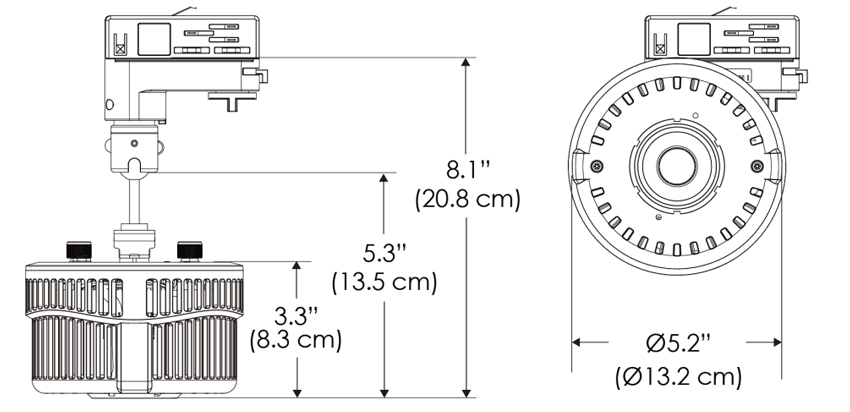

| W500X-TOX/TON | PS  | PSX |
 |
 |  |
| W500X-TOX/TON | PS  | PSX |
 |
 |  |
| W500X-CLP | PS | PSX  |
 |
 |  |
*All-CLP configuration models come with standard clamp pipe diameters that range from 1.8" to 2.0". |
||
| Mounting Bracket Dimensions ALL-CLP *All-CLP configuration models come with standard DC cables of 6" and AC cables of 10'. |
 |
|

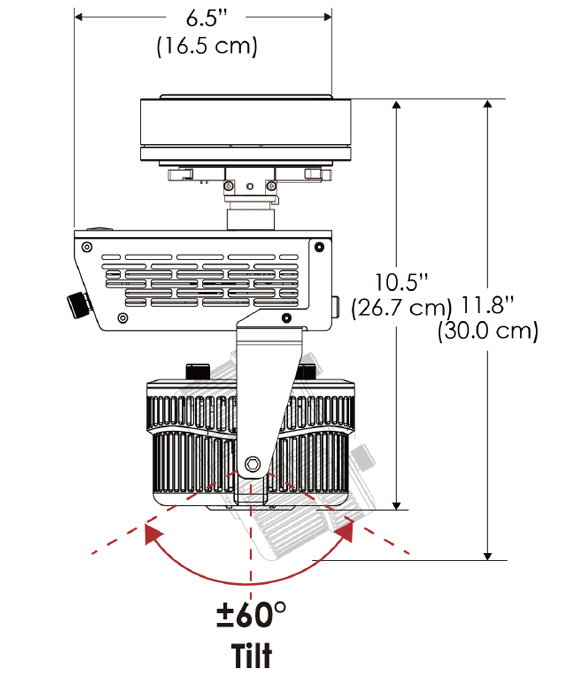

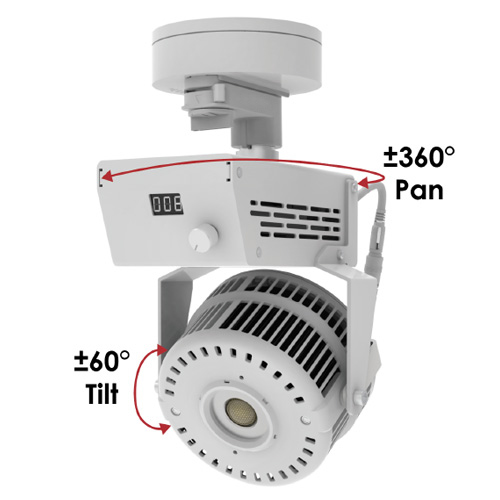

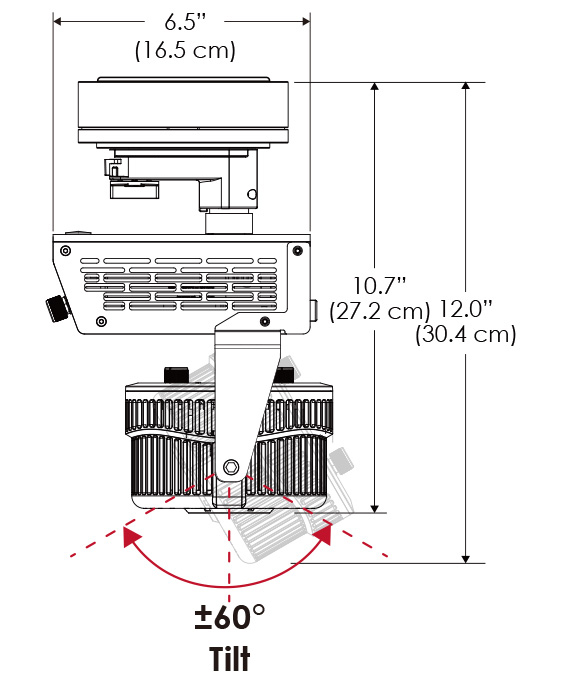

| W500X-MPT | PSX | PSX |
 |
 |  |
| W500X-TEX (legacy products) | PS | PSX |
 |
 |  |
| W500X-TG (legacy products) | PS |
|
 |
 | |
Separator

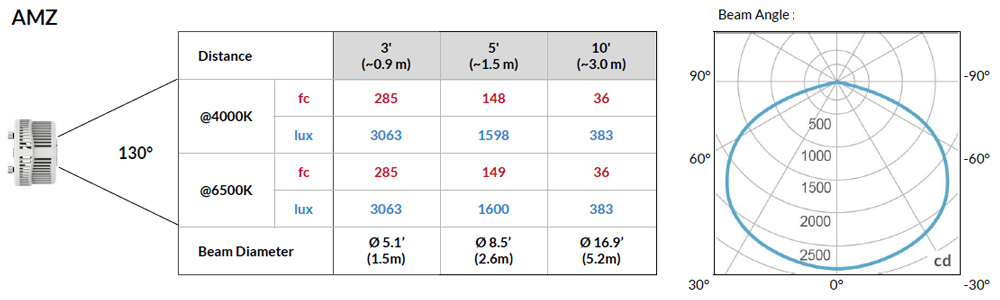

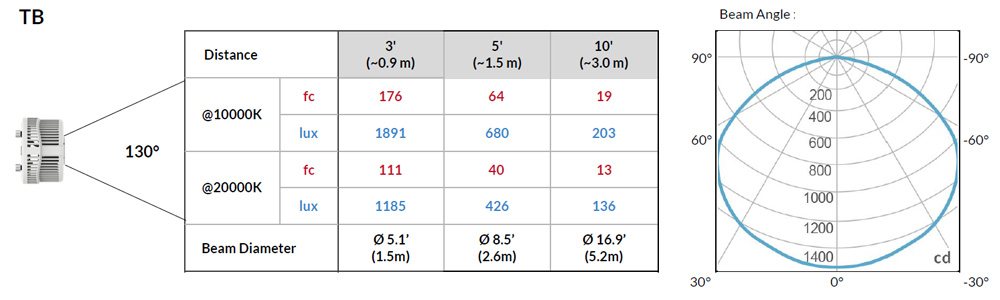

PHOTOMETRIC DATA
Separator
ITEMS INCLUDED

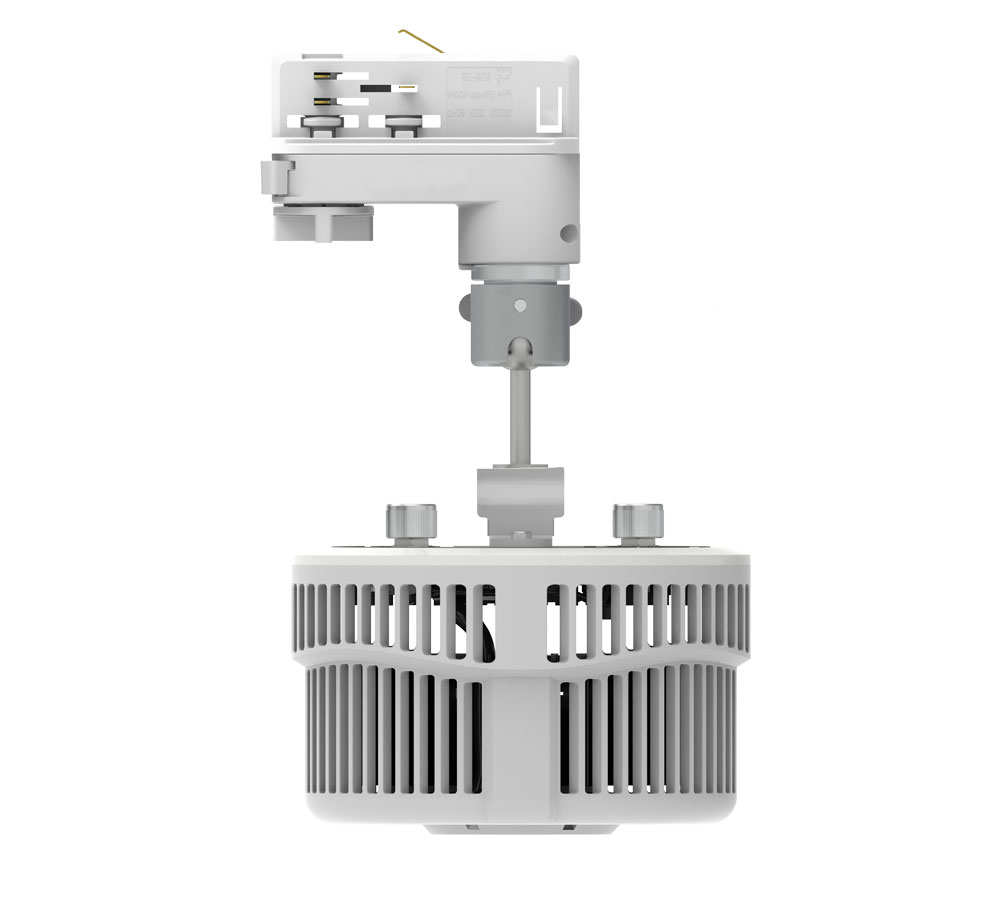

W500X-TOX / TON / CLP / TEX / TG Type
W500X fixture
PSU

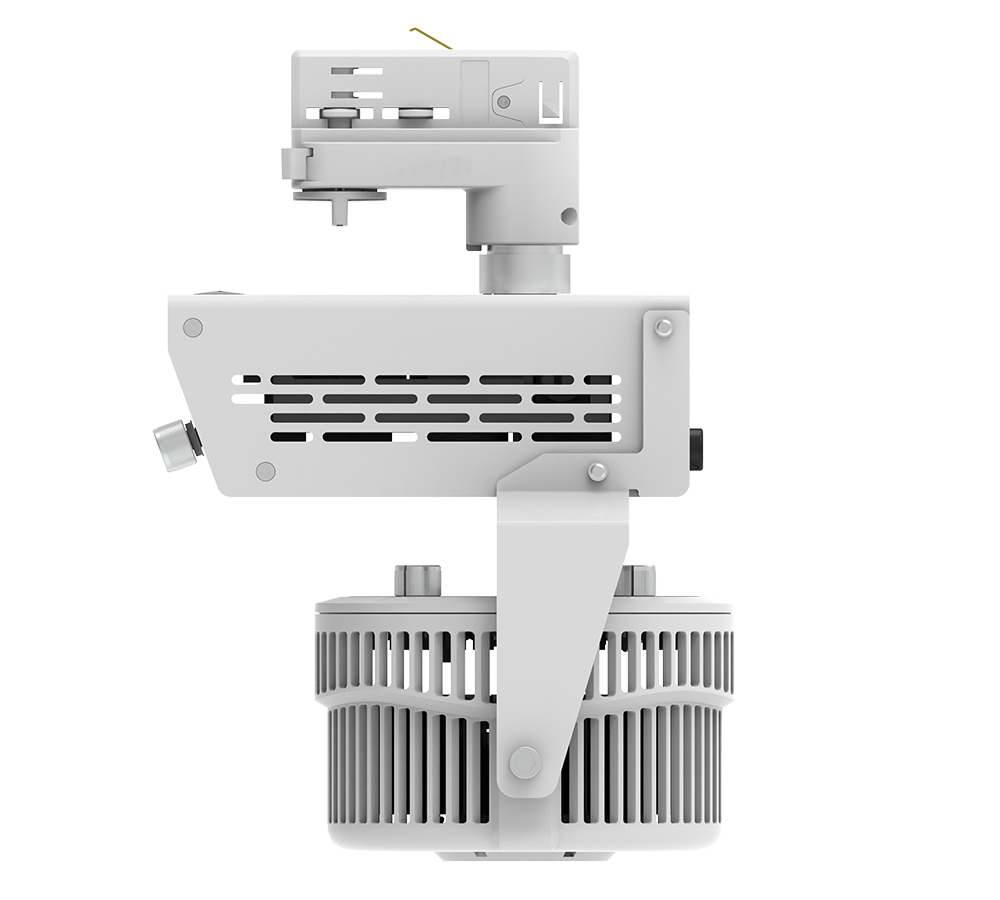

W500X-MPT Type
W500X fixture + PSU
Monopoint Adapter
