Kessil Spec RPU
Part Number
KSWRPU
Weight
0.42lb / 0.19kg
Dimensions
L 6.0" x W 2.2" x H 1.1" /
L 15.2cm x W 5.6cm x H 2.8cm
Separator
Product Information
Overview
The Kessil RPU is a multi-functional, professional-grade controller built for configuring, managing, and troubleshooting DMX lighting systems. It enables real-time adjustment of fixture parameters, batch patching of multiple fixtures, and on-the-go saving of configuration presets. Key capabilities include time-based scheduling, lunar cycle simulation, DMX signal analysis, fixture diagnostics, and firmware updates via USB or Wi-Fi. With import/export support and an internal battery for mobile operation, the RPU offers flexibility in both studio and field environments.
Separator
What's in the Box
Kessil Spec RPU (x1)
Power Cable (Type C with locking nut to A, 6m) (x1)
Signal Cable (RJ45 to TRS, 6m) (x1)
Wall Mount (x1)
Low Head screw, 1/4"-20 (x1)
Allen wrench (x1)
Tapping screw (x2)
Nylon Anchor (x2)
Batteries (x2)
Separator

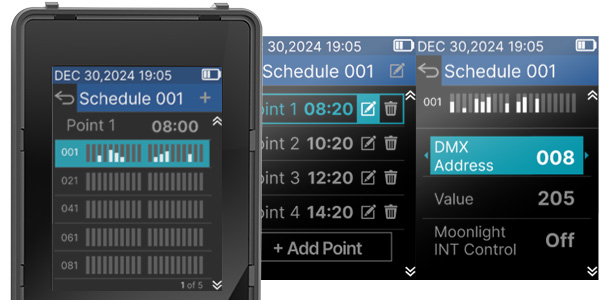

Full DMX Universe with Schedule and Lunar Cycle Support
The RPU supports full DMX universe output, allowing users to configure channel parameters, patch multiple fixtures, and simulate natural lighting environments. With built-in schedule programming and lunar cycle simulation, users can replicate sunrise, sunset, and moonlight transitions with smooth DMX fades—ideal for aquarium, horticulture, and exhibit applications.
Separator

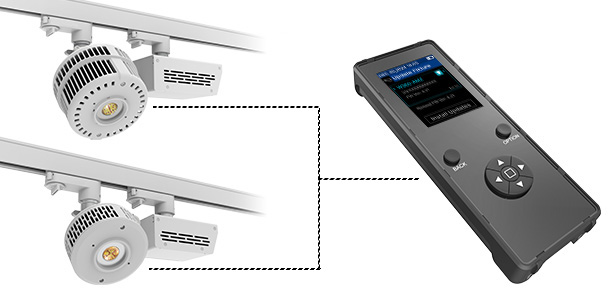

Field Diagnostics
Integrated diagnostic tools, including DMX signal monitoring and fixture testing, help troubleshoot systems on-site. The RPU also features a built-in rechargeable battery and rugged, water-resistant housing, making it a reliable tool in any environment.
Note: DMX adapter cables are sold separately
Separator
Compatible with
W360X
W360B
W360BD
W360N
W360S
W360W
W500X
W500B
W500BD
W500N
W500S
W500W
W2KX
W2KB
W2KBD
W2KN
W2KS
