W500B Interior Landscape / Aquascape Light
175W LED / 55°
Model No: KSW500B-
DOWNLOADS
Separator
SPECIFICATIONS
| Beam Angle | 55° |
| Spectrum Type | AMZ: Plant Flourish & Growth TB: Coral Health & Growth |
| Control | Intensity (0%-100%), CCT |
| LED Source | DiCon Dense Matrix LED |
| Power Draw | 175W max |
| AC Input Voltage | 100 - 240V AC, 60Hz 100 - 277V AC (only with CLP) |
| Cooling | Fan Cooled |
| Operating Temperature | 32-104°F (0-40°C) |
| Fixture Weight | 1.7lb / 0.8kg |
| Power Supply Weight | 1.6lb / 0.7kg |
Separator

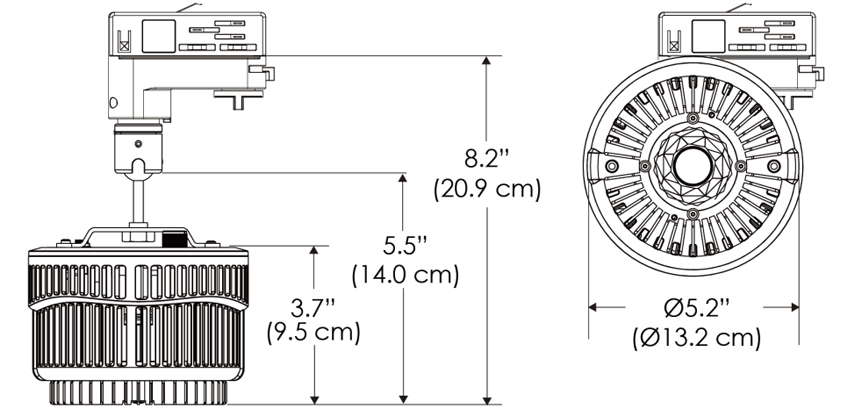

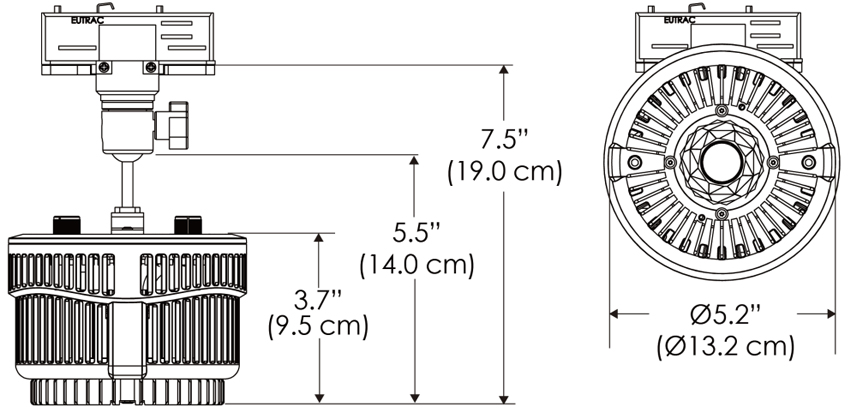

MECHANICAL FIGURES
| W500B-TOX/TON | PS  | PSX |
 |
 |  |
| W500B-TOX/TON | PS  | PSX |
 |
 |  |
| W500B-CLP | PS | PSX  |
 |
 |  |
| Mounting Bracket Dimensions ALL-CLP *All -CLP configuration models come with standard DC cables of 6 inches and AC cables of 10 ft. |
 |
|

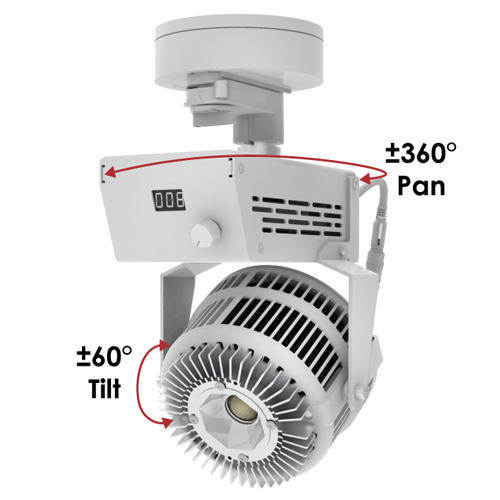

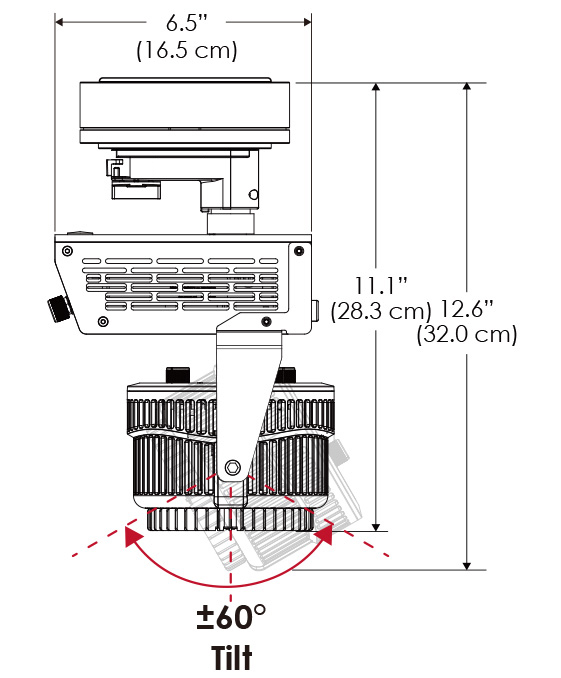

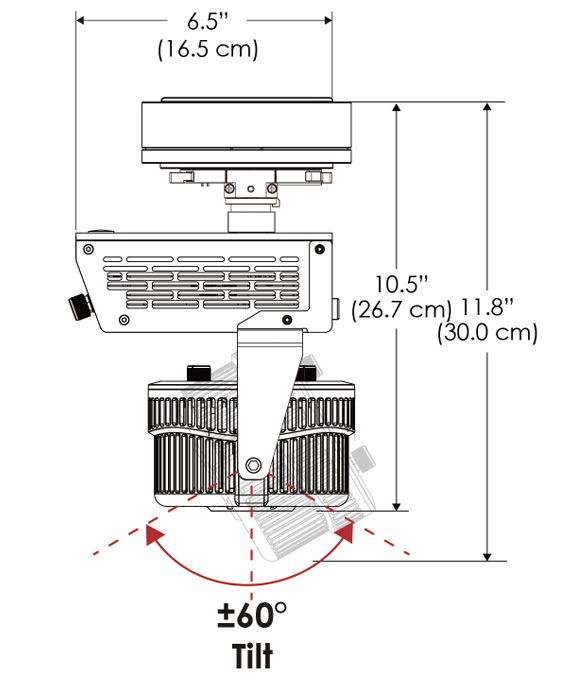

| W500B-MPT | PSX | PSX |
 |
 |  |
| W500B-TEX (legacy products) | PS | PSX |
 |
 |  |
| W500B-TG (legacy products) | PS |
|
 |
 | |
Separator

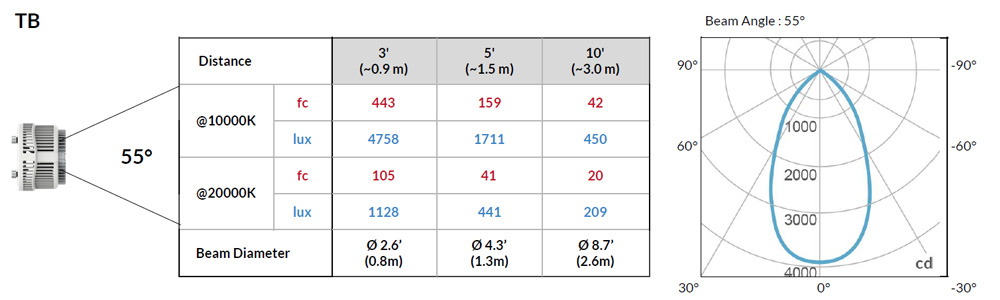

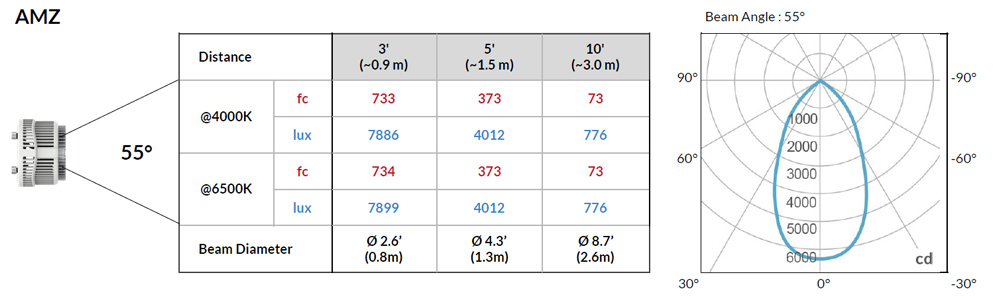

PHOTOMETRIC DATA
Separator
ITEMS INCLUDED

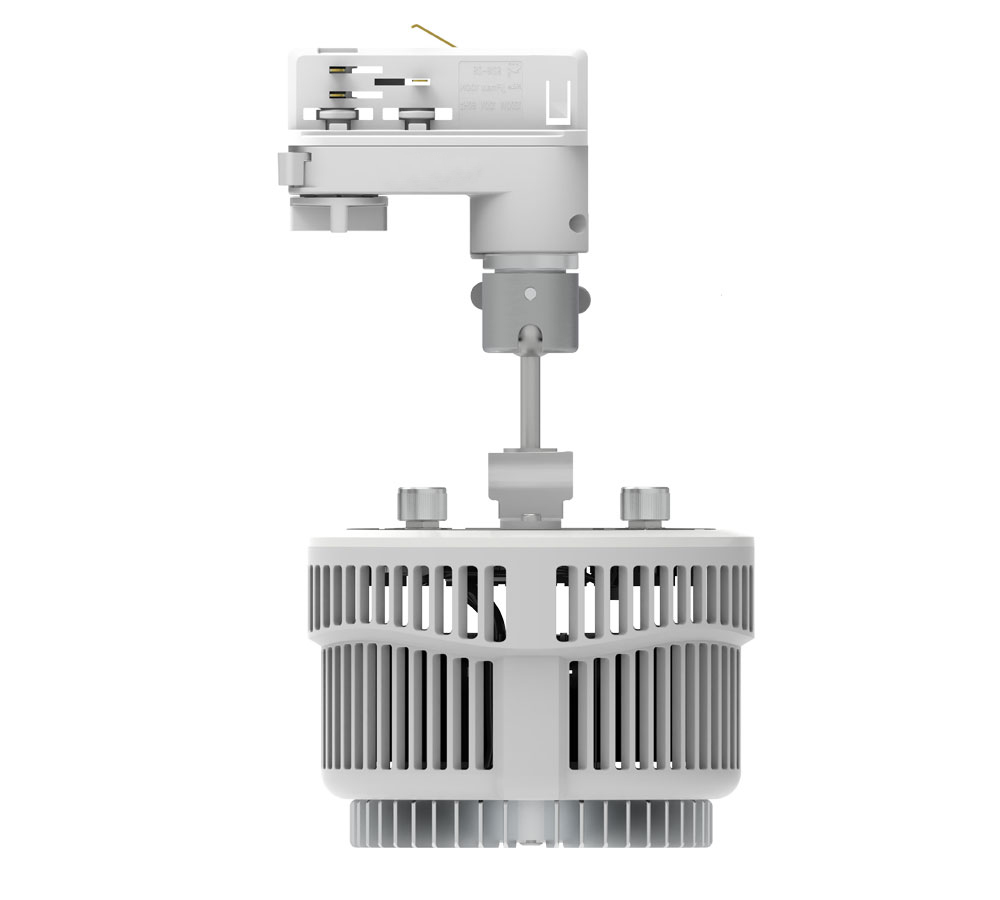

W500B-TOX / TON / CLP / TEX / TG Type
W500B fixture
PSU

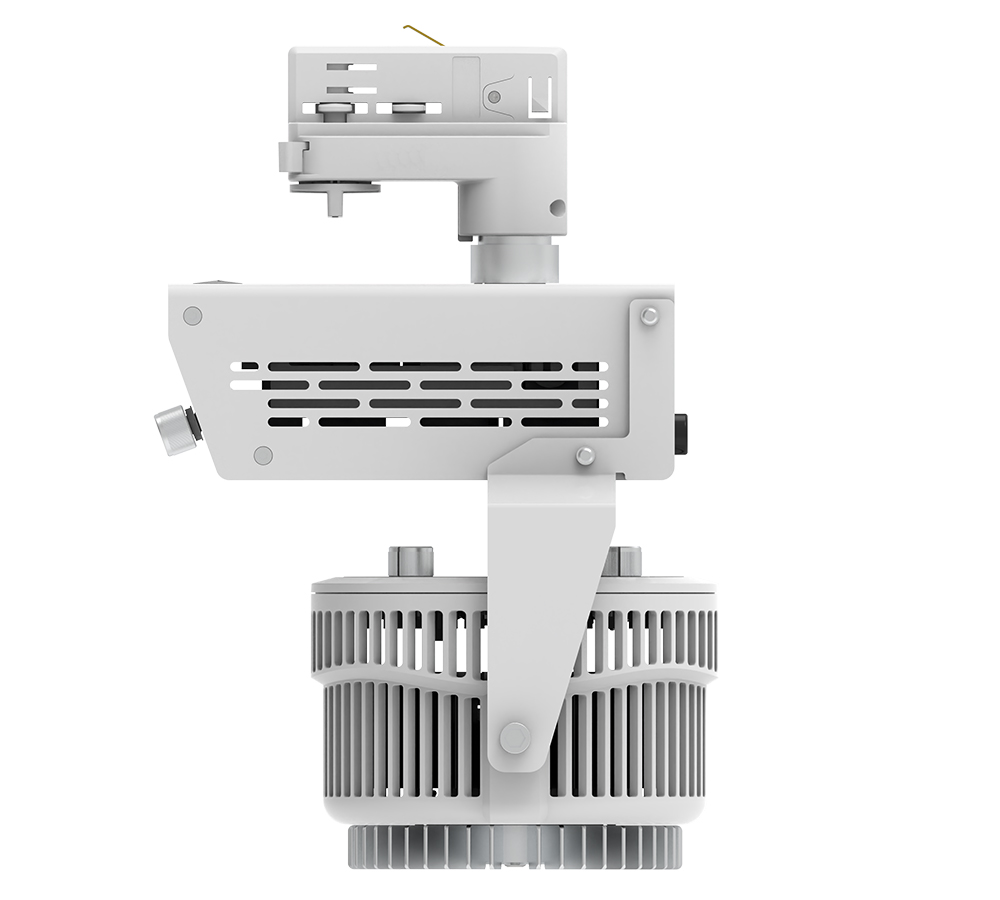

W500B-MPT Type
W500B fixture + PSU
Monopoint Adapter
