• Plant / Coral Focused Light Spectrum

• Flicker-free for animal welfare

• High-Intensity Point Source LED

• Low-Profile

• DMX Controllable

• Also Available with Other Optics

SPECIFICATIONS

Beam Angle	15°
Spectrum Type	AMZ: Plant Flourish & Growth TB: Coral Health & Growth
Control	Intensity (0%-100%), CCT
LED Source	DiCon Dense Matrix LED
AC Power Draw	175W max
AC Input Voltage	100 - 240V AC, 60Hz 100 - 277V AC (only with CLP)
Cooling	Fan Cooled
Operating Temperature	32-104°F (0-40°C)
Fixture Weight	2.0lb / 0.9kg
Power Supply Weight	1.6lb / 0.7kg
Approved Regulatory Standard	cETLus, FCC, RoHS, WEEE

MECHANICAL FIGURES

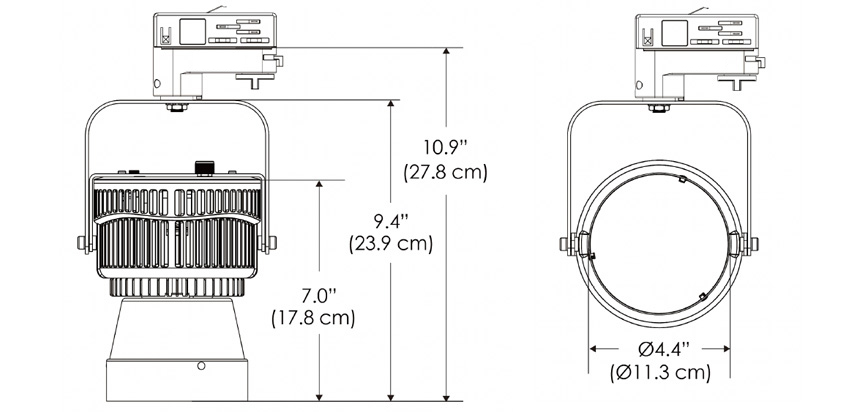

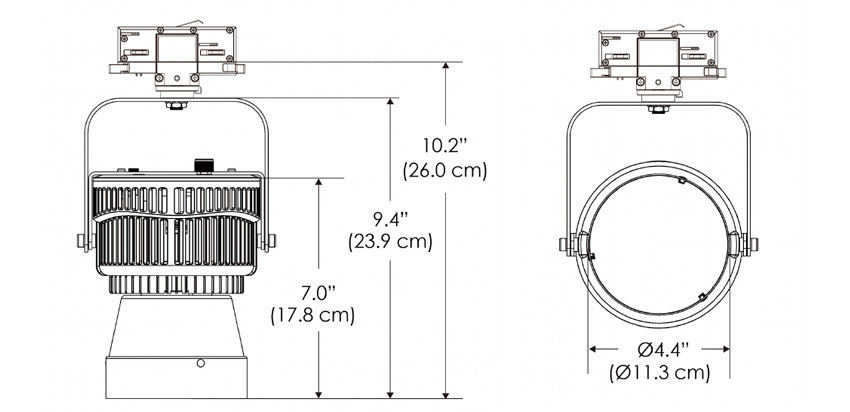

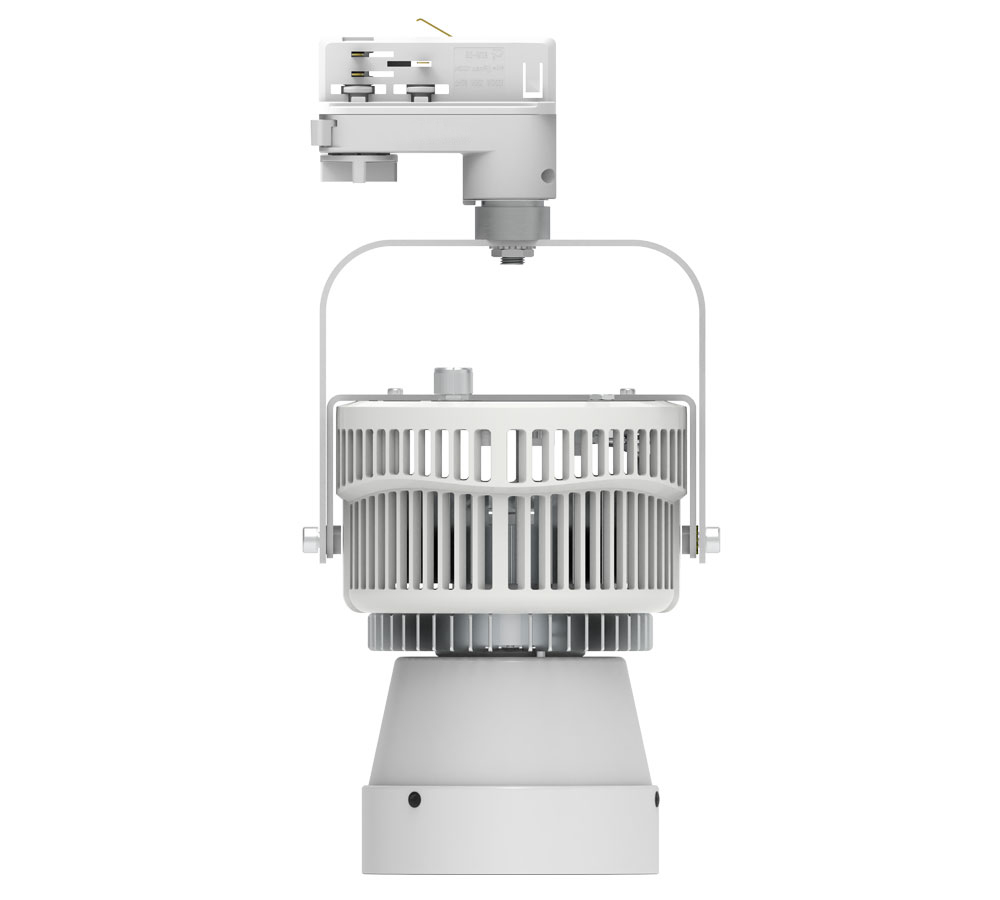

W500S-TOX/TON	PS	PSX
W500S-TOX/TON	PS	PSX
W500S-CLP	PS	PSX
*All-CLP configuration models come with standard clamp pipe diameters that range from 1.8" to 2.0".
Mounting Bracket Dimensions ALL-CLP *All-CLP configuration models come with standard DC cables of 6" and AC cables of 6'.

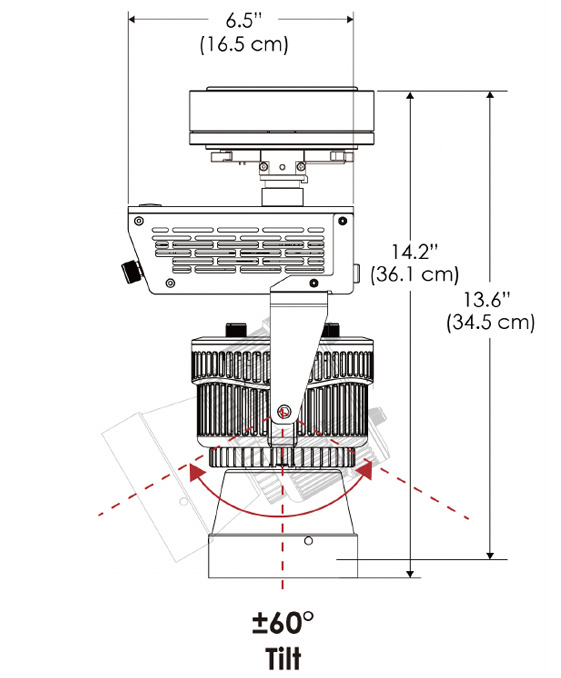

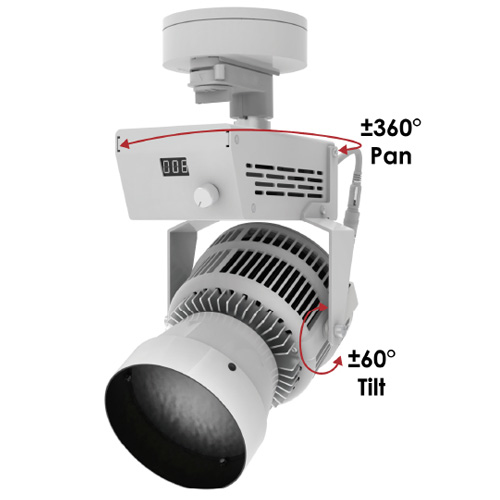

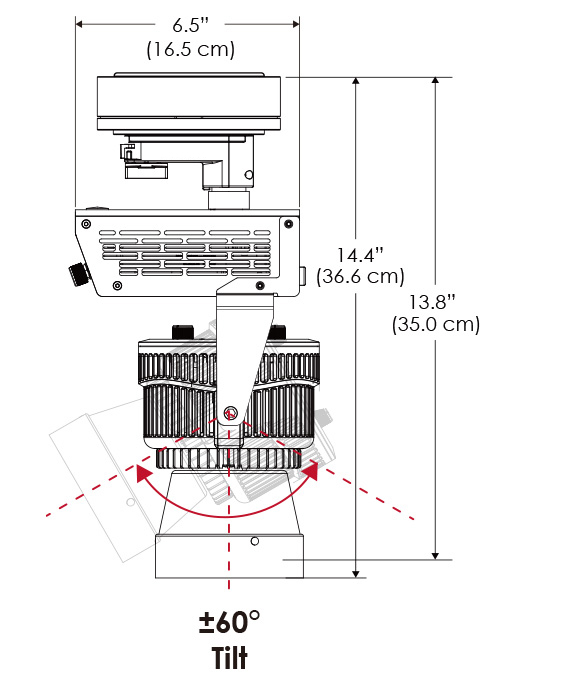

W500S-MPT	PSX	PSX
W500S-TEX (legacy products)	PS	PSX
W500S-TG (legacy products)	PS

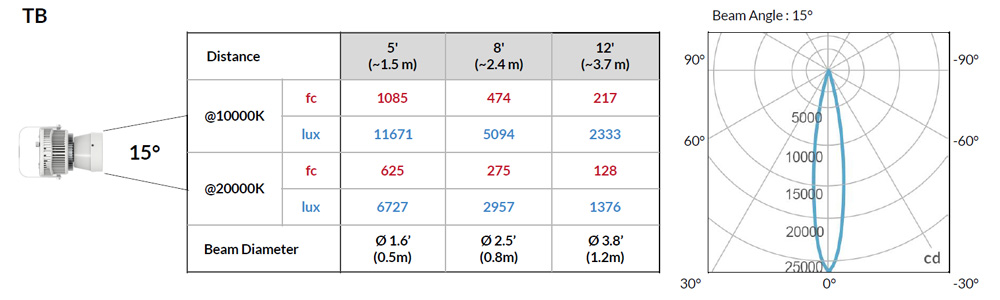

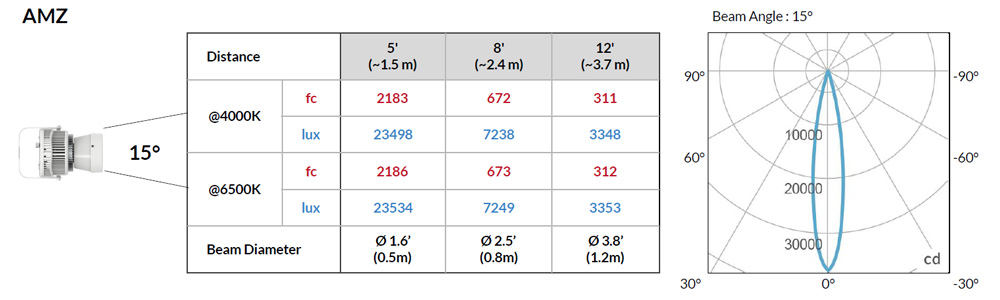

PHOTOMETRIC DATA

ITEMS INCLUDED

W500S-TOX / TON / CLP / TEX / TG Type

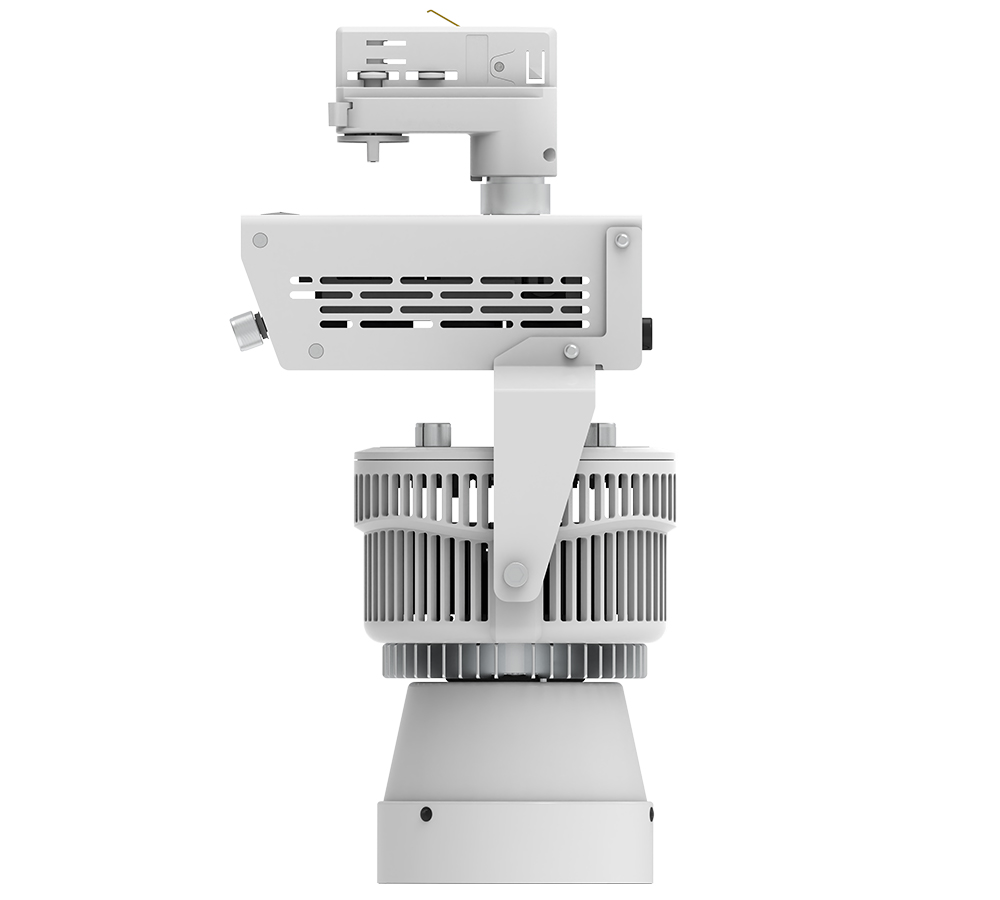

W500S-MPT Type

TRACK PARTS
