New UVA LED PR160L-370nm Gen 2
Now 3 Times More Powerful!
Higher Irradiance & Enhanced Photoreaction
- Optimized for photochemistry and other applications in biomedicine, material science, UV curing etc.
- Safer, longer lifespan, less heat and more environmental friendly compared to conventional light sources
Separator
Newly Designed Linear Reflector
- A linear illumination area with more even light distribution
Click here for the Intensity Maps (also comes in the PR160L light package) - Higher intensity than the previous model PR160 - average intensity is up to 30% higher than that of PR160
Click here for the Contour Intensity Maps (also comes in the PR160L light package) - Upgrade kit is available if you have the PR160. Please Contact us for purchase options
Finely Tuned Wavelengths
- Seven precise wavelengths to choose from - 370nm, 390nm, 427nm, 440nm, 456nm, 467nm, 525nm. Customized solution is available (400nm, 518nm, 595nm, 640nm, 660nm, 740nm, etc), please Contact us for more information
- Study in-depth and optimize photoexcitation/photoredox reactions to save time and cost
Increased Intensity for Higher Efficiency
- Intense and penetrating light reduces reaction times and cost (50% brighter than our already intense Kessil H150 Blue)

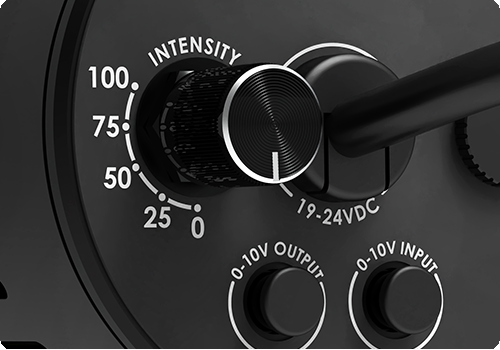

- 4 levels of intensity control allows you to study the functional relationship between intensity and yield
Flexibility & Simplicity
- Easily configure for different geometries (vials, test tubes, flasks, etc…)
- Add more PR160Ls to scale up your experiment and increase intensity
- Multiple mounting: PR160 Rig w/ Fan Kit, lab clamp, Kessil Gooseneck, etc.

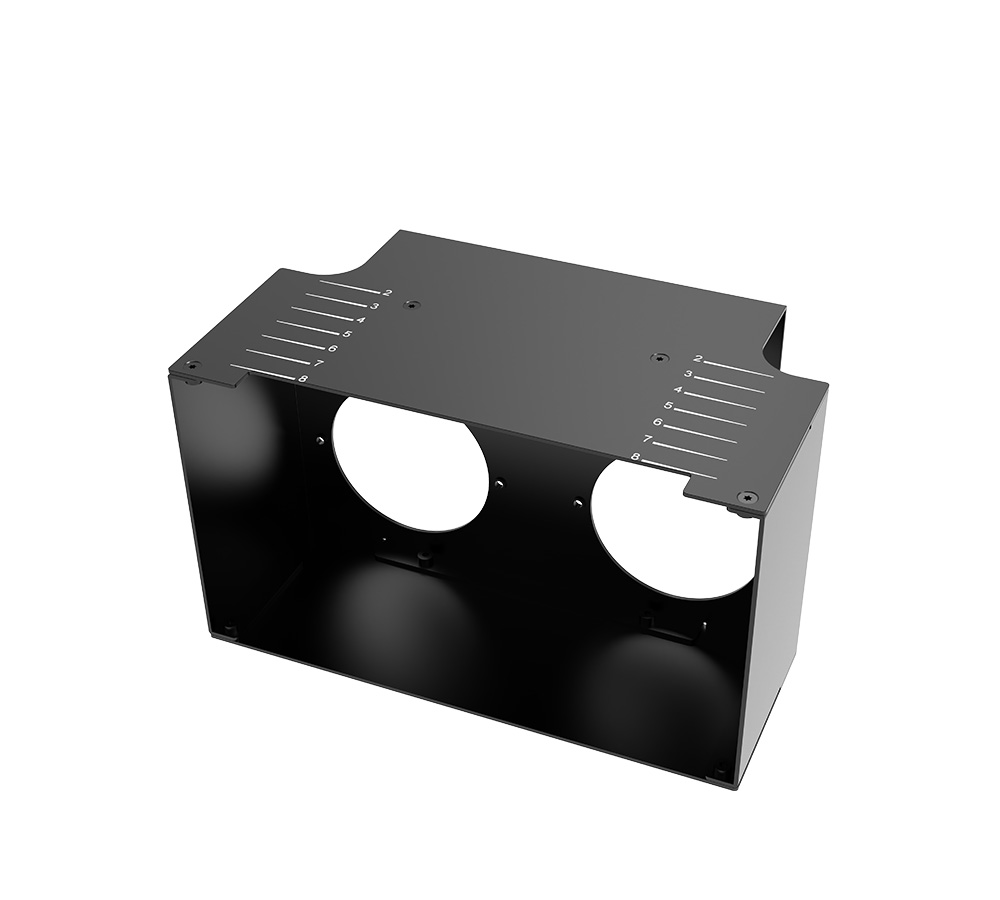

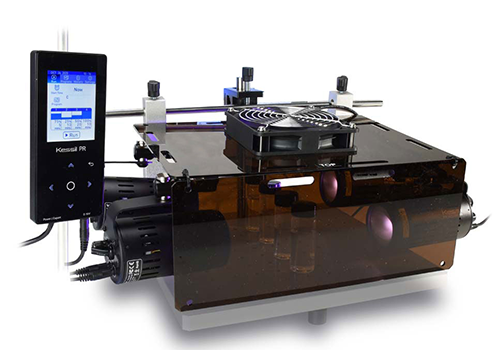

Upgraded PR160 Rig With Fan Kit
- Specifically designed mounting to turn system into photoreactor for typical laboratory photocatalytic reactions
- Full adjustability and secure mounting provides consistency and accuracy
- Comes with a powerful fan to blow air efficiently (proved to be more efficient than clamp desktop fan) to keep the reactions at room temperature as much as possible
- Comes with light-blocking shields for lab safety, which blocks all UV light and most blue light
Designed for Consistency and Reliability
- Easy to operate
- Reliable results and repeatable reactions, perfect for commercial setups or flow photochemistry
- Consistency between every unit
- Peak wavelength within ±1nm*
- Optical output within 3%*
*Standard Deviation
Separator

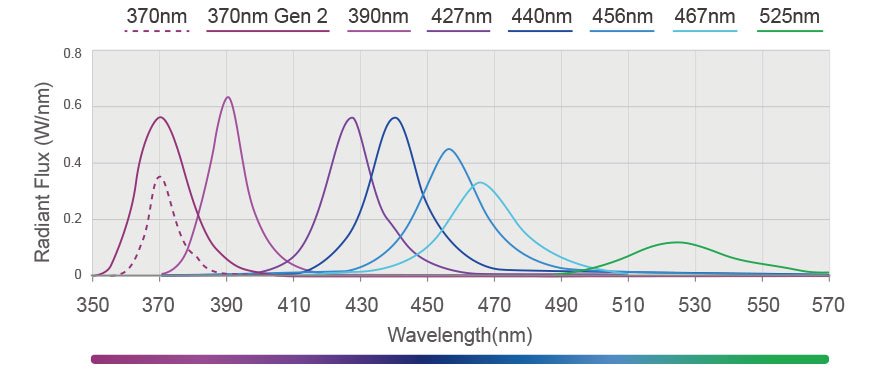

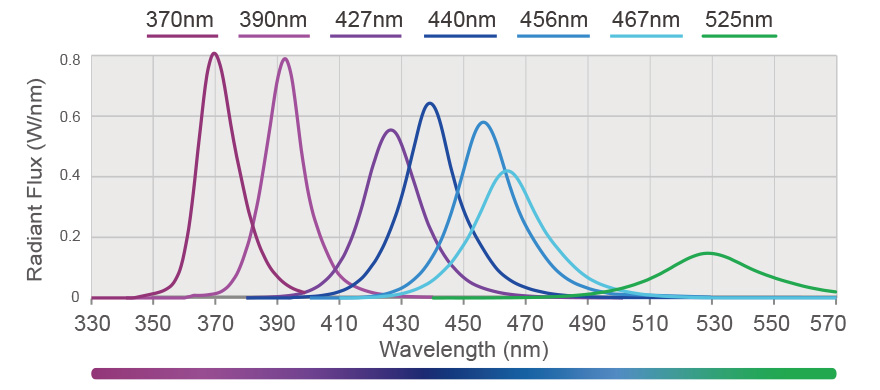

Product Spectrums
Separator
Technical Specifications
| Power Consumption (AC) | 370nm Gen 2 (max 44W), 370nm (max 43W), 390nm (max 52W), 427nm & 440nm (max 45W), 456nm (max 50W), 467nm (max 44W), 525nm (max 44W) |
| Input Voltage | 100-240 VAC |
| Operating Temperature | 0 - 40°C / 32 - 104°F |
| Beam Angle | 56° |
| Wavelength Options | 370nm, 390nm, 427nm, 440nm, 456nm, 467nm, 525nm |
| Average Intensity of PR160 series | 399mW/cm2 (measured from 1 cm distance) |
| Dimensions (H x D) | 4.49" x 2.48" / 11.4cm x 6.3cm |
Separator
Ordering Information
PR160L
–
Options
370370nm Gen 2
370370nm
390390nm
427427nm
440440nm
456456nm
467467nm
525525nm
We offer customized solutions in other form factors or wavelengths (400nm, 518nm, 595nm, 640nm, 660nm, 740nm, etc), please Contact us for more information
