PR300 Shielding Box Plus
Part Number
KSPRSB02
Weight
14.8lb / 6.7kg
Dimensions
(W x L x H)
30.1" x 19.2" x 7.6" /
76.4cm x 48.8cm x 19.3cm
Operating Temperature
0 - 40°C /
32 - 104°F
Separator
Product Information
Overview

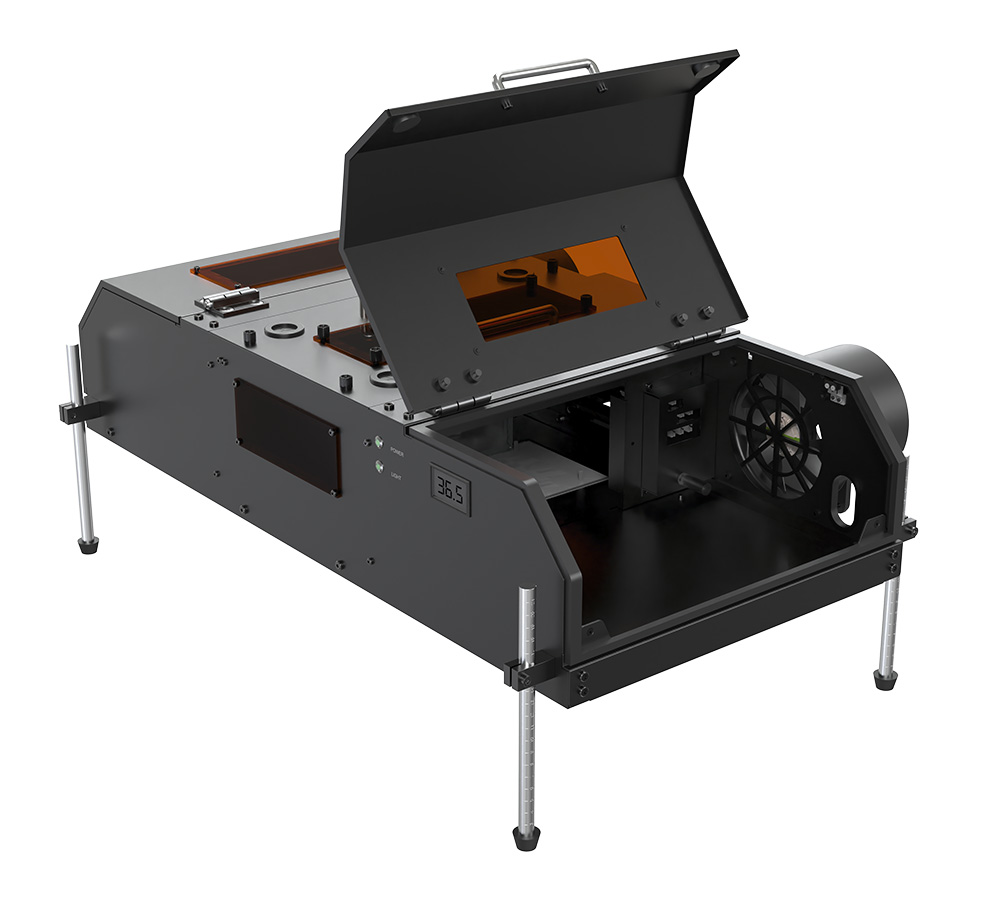

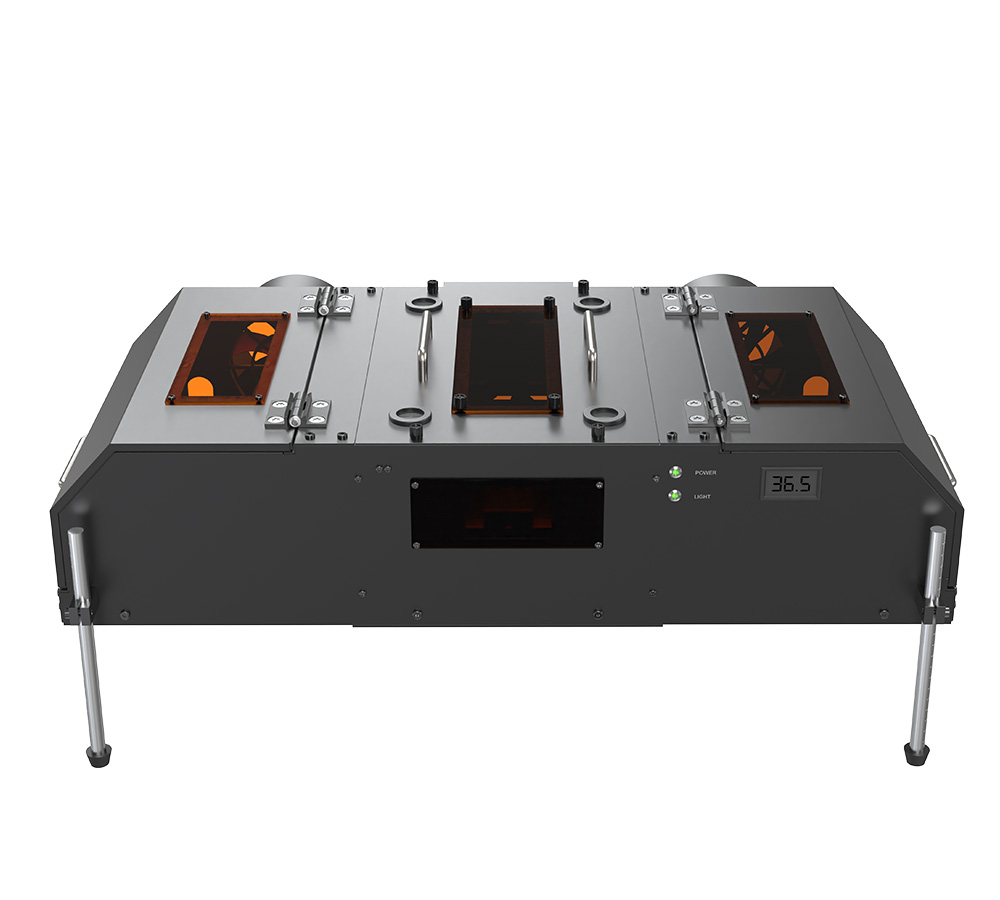

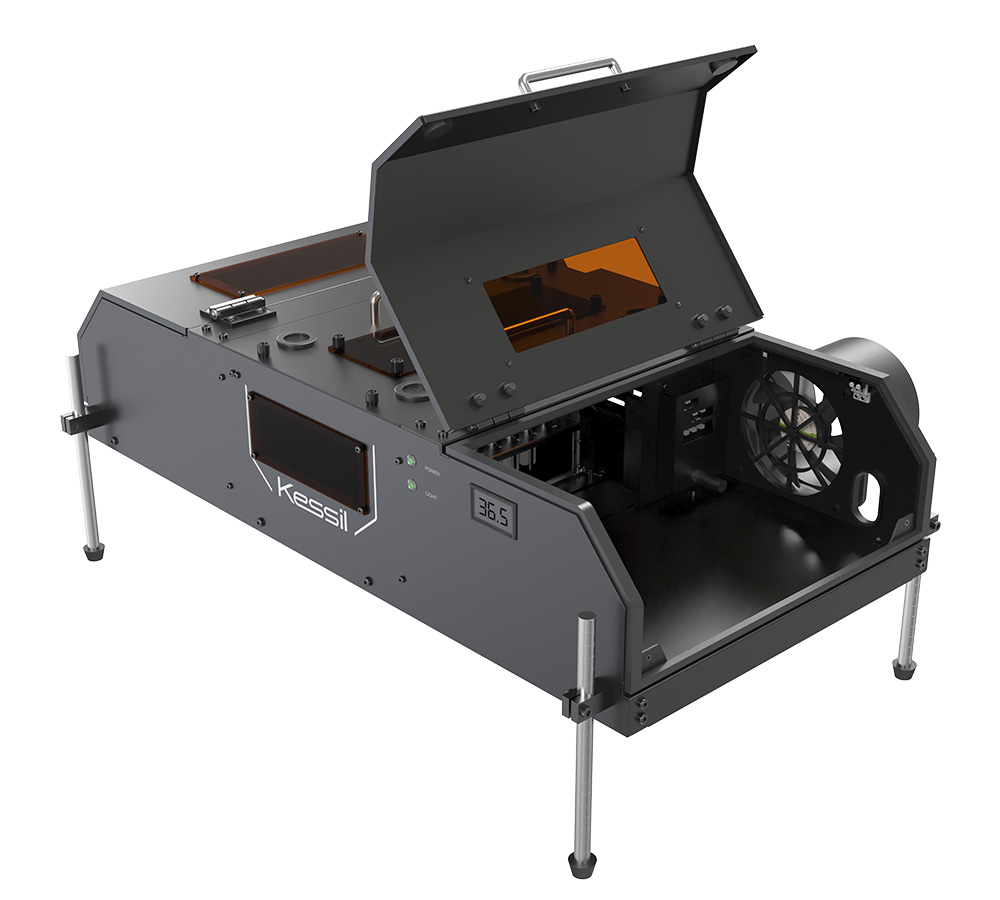

The PR300 Shielding Box Plus is a fully enclosed safety enclosure designed for high-intensity photochemical reactions using PR300 LED lamps. Optimized for laboratory use, it provides complete light containment, active safety interlocks, and integrated thermal management to ensure safe, stable, and reproducible operation.
Separator
Safety
Fully enclosed design provides complete shielding from intense visible and UV light
Safety interlocks automatically pause PR300 lamps when the lid is opened
Active status indicators provide real-time confirmation that the system is energized and the lamps are ON
Built with durable, laboratory-grade materials to withstand long-term use in demanding research environments
Separator
Accuracy and Repeatability
Securely houses 2 × PR300 LED lamps for higher throughput in batch or flow reactions
Creates a stable photoreactor platform enabling parallel screening and efficient scale-up synthesis, all in one system
Engraved distance markings ensure precise and repeatable irradiation geometry with accurate irradiance data
Adjustable base fits common laboratory stir plates (not included)
Separator
Cooling and Thermal Management
Built-in high-performance fan significant enhances airflow to manage reaction temperature
Integrated temperature monitoring for real-time tracking of the reaction environment

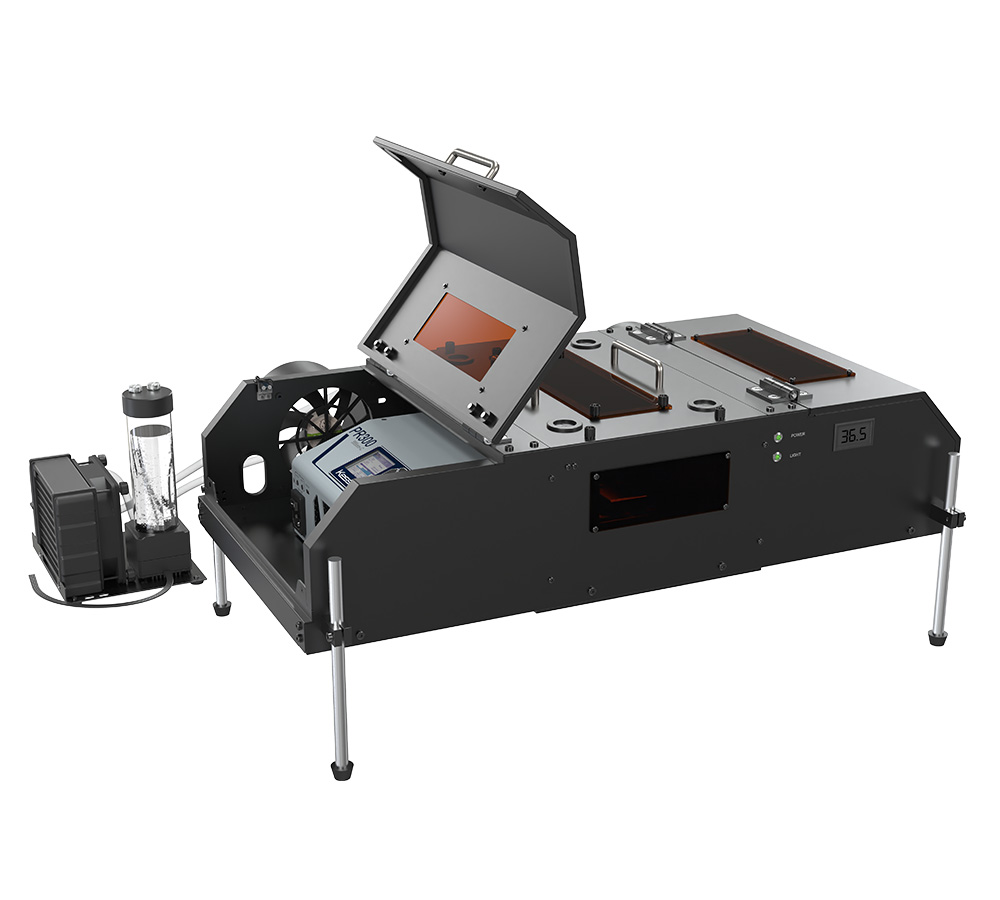

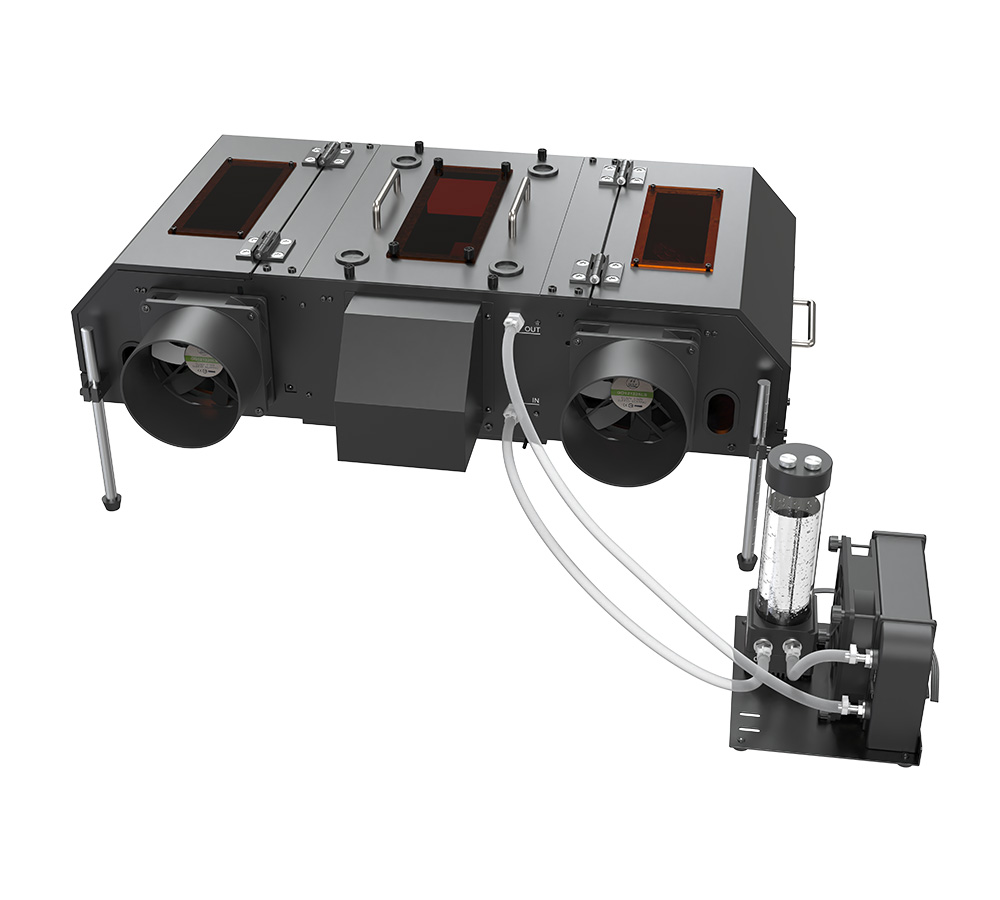

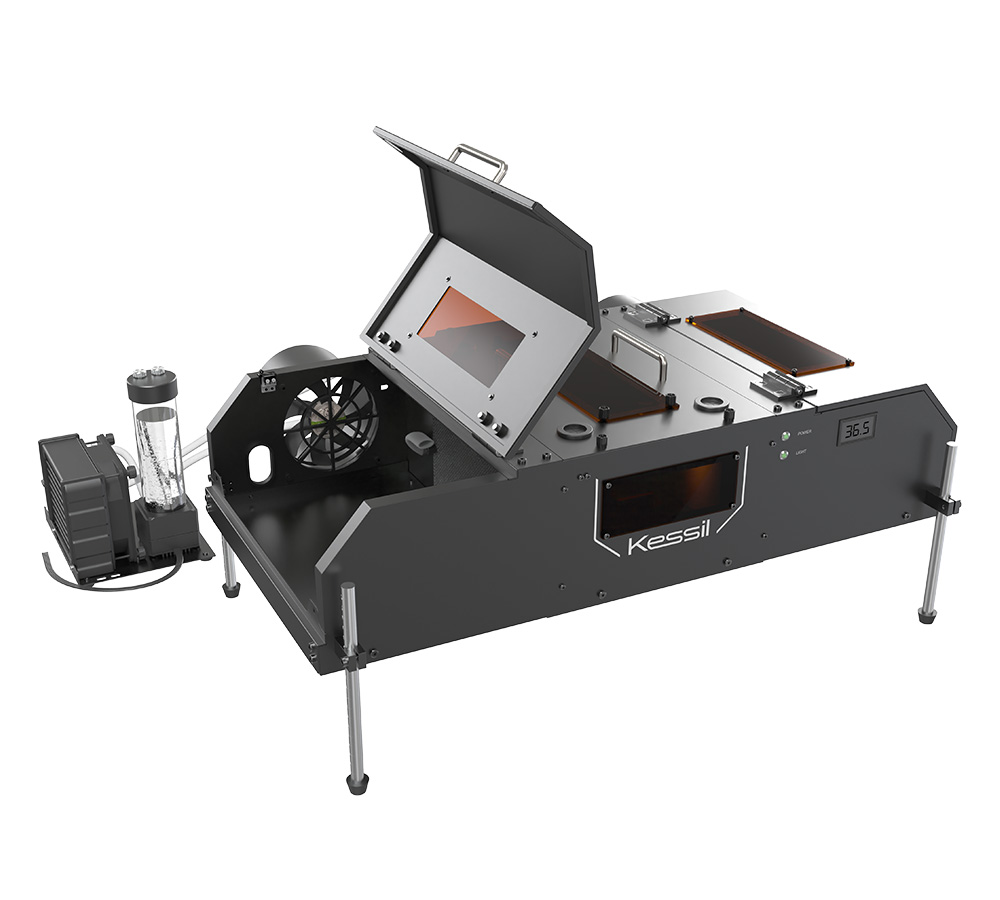

Compatible with the PR300 Water Cooling System for advanced temperature control
Feedthrough ports accommodate probes, liquid lines, and gas lines, supporting diverse and complex reaction setups
Separator
What's in the Box
PR300 Shielding Box Plus (×1)
Power Adapter DC 12V / 2A (×1)
Separator
Optional Accessory
-
PR160L Mounting Module (for PR300 Shielding Box Plus) – Enables mounting of PR160L-275 and PR160L-300 lamps inside the PR300 Shielding Box Plus
Note 1: PR160L series lamps do not support the integrated safety interlock feature of the PR300 Shielding Box Plus.
Note 2: Up to 4x PR160L lamps can be mounted inside the box using 2x PR160L Mounting Modules and synchronized / programmed using the PR Controller via 0-10V cables.
Separator
Compatible with
PR300
