W360S Interior Landscape / Aquascape Light
80W LED / 15°
Model No: KSW360S-
DOWNLOADS
Separator
SPECIFICATIONS
| Beam Angle | 15° |
| Spectrum Type | AMZ: Plant Flourish & Growth TB: Coral Health & Growth |
| Control | Intensity (0%-100%), CCT |
| LED Source | DiCon Dense Matrix LED |
| AC Power Draw | 80W max |
| AC Input Voltage | 100 - 240V AC, 60Hz |
| Cooling | Fan Cooled |
| Operating Temperature | 32-104°F (0-40°C) |
| Fixture Weight | 1.3lb / 0.6kg |
| Power Supply Weight | 1.0lb / 0.4kg |
Separator
MECHANICAL FIGURES

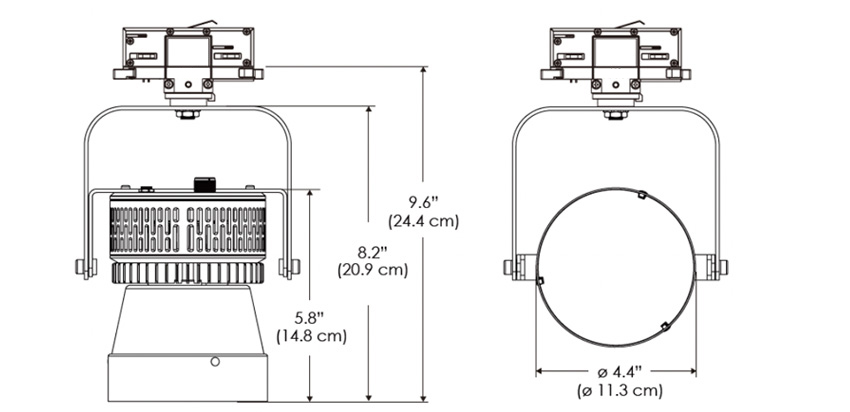

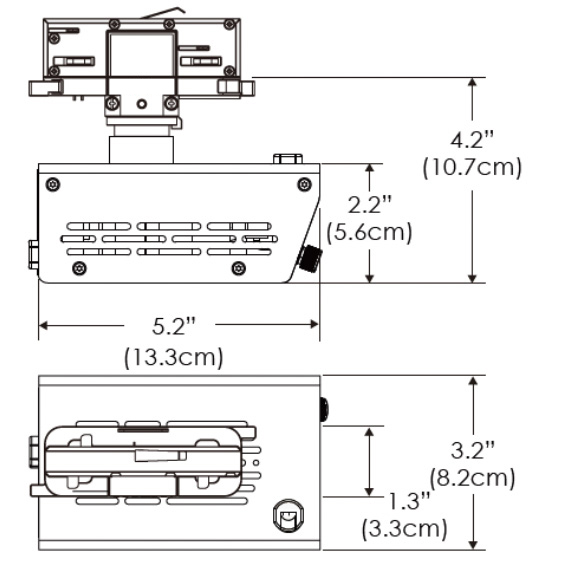

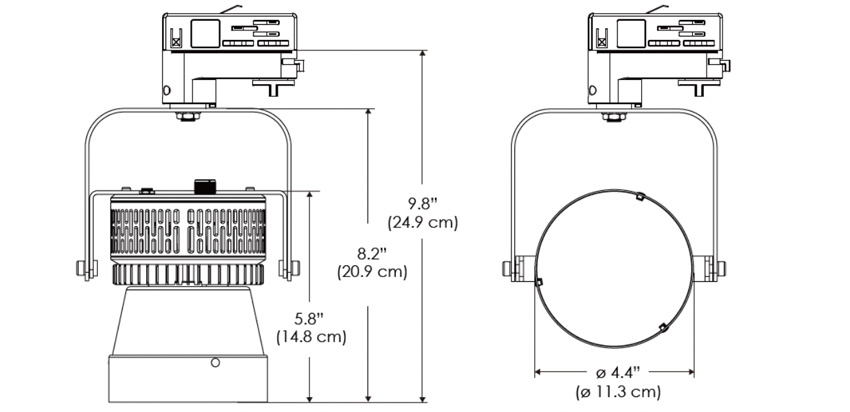

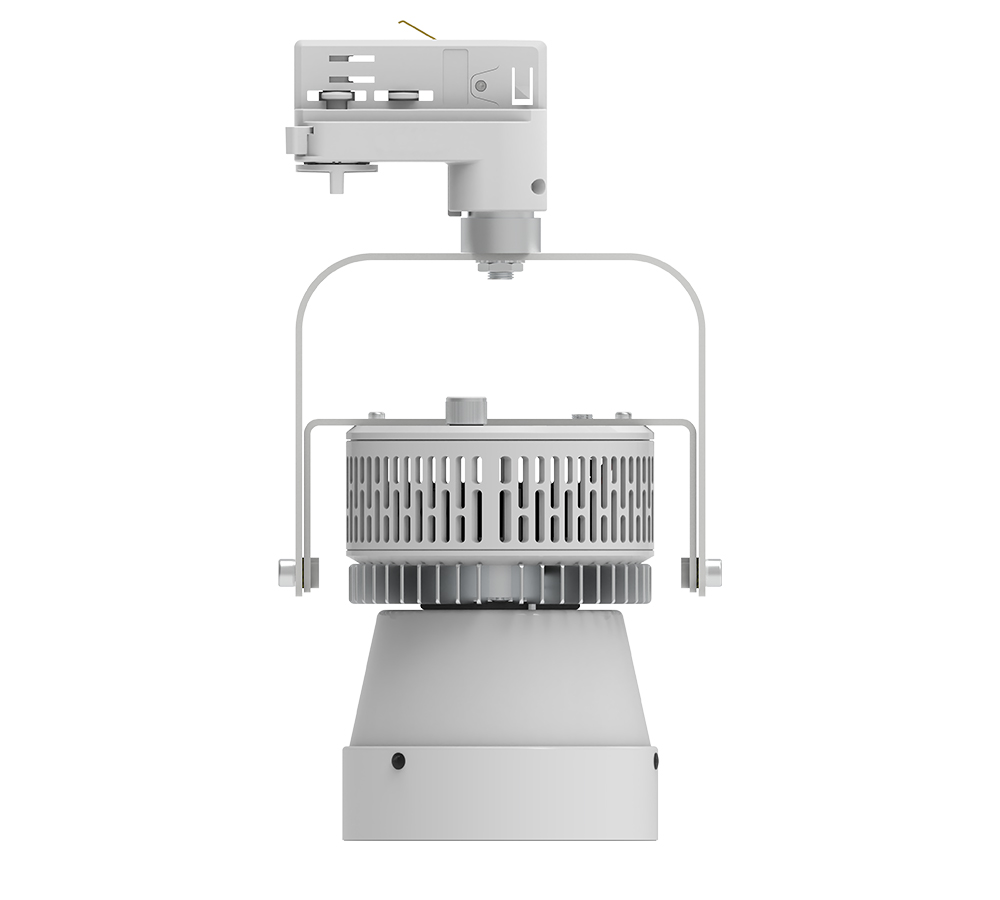

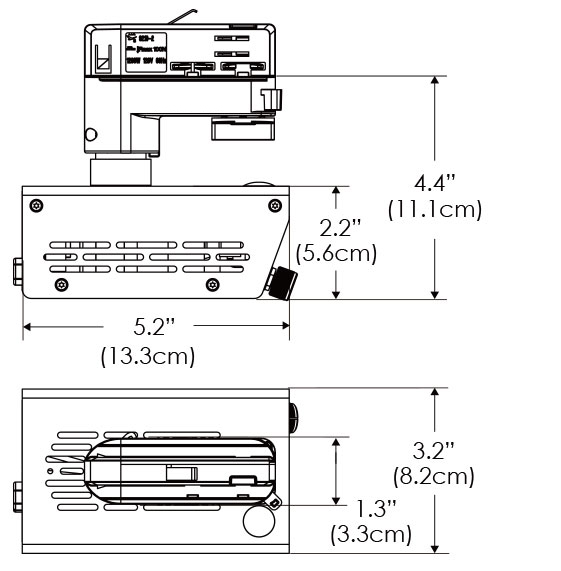

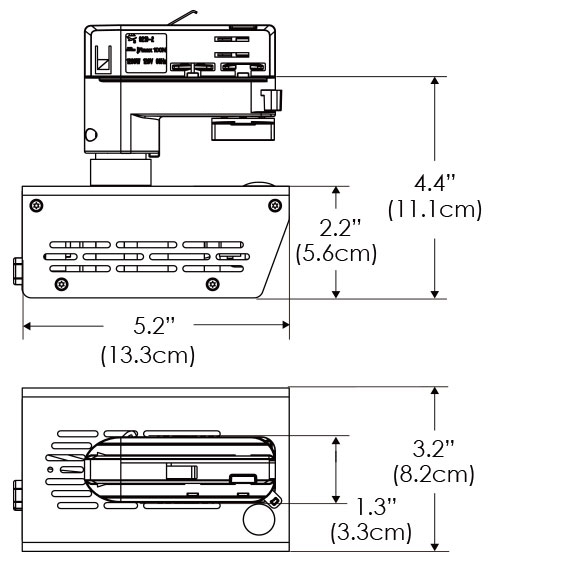

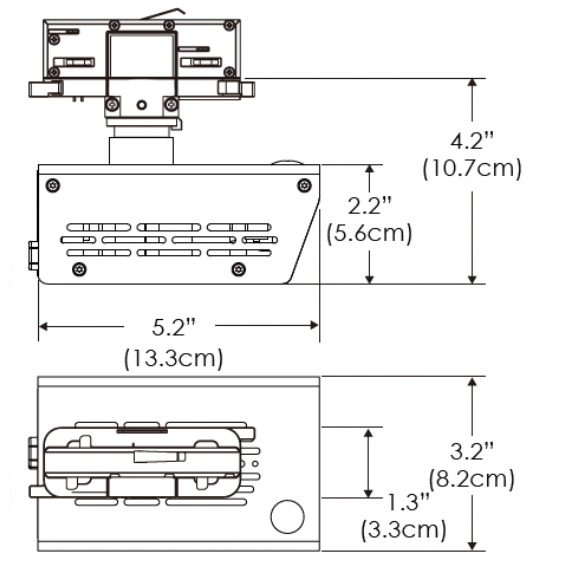

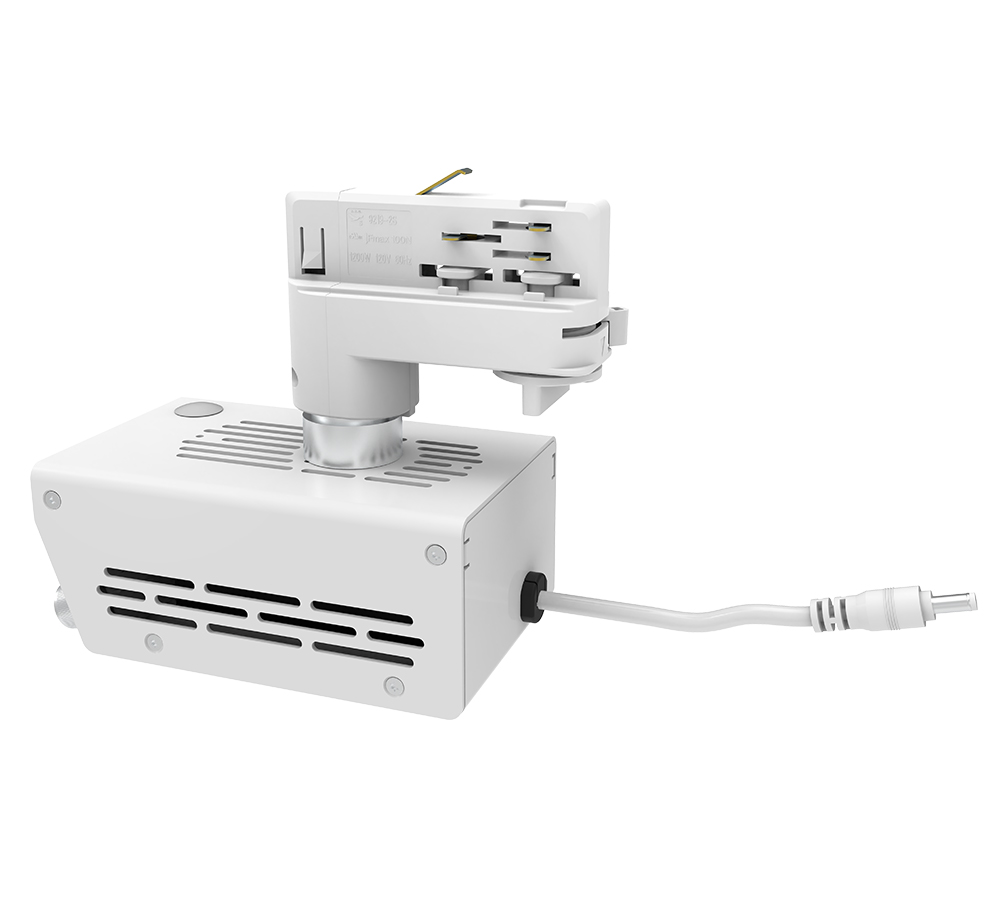

| W360S-TOX/TON | PS  | PSX |
 |
 |  |
| W360S-TOX/TON | PS  | PSX |
 |
 |  |

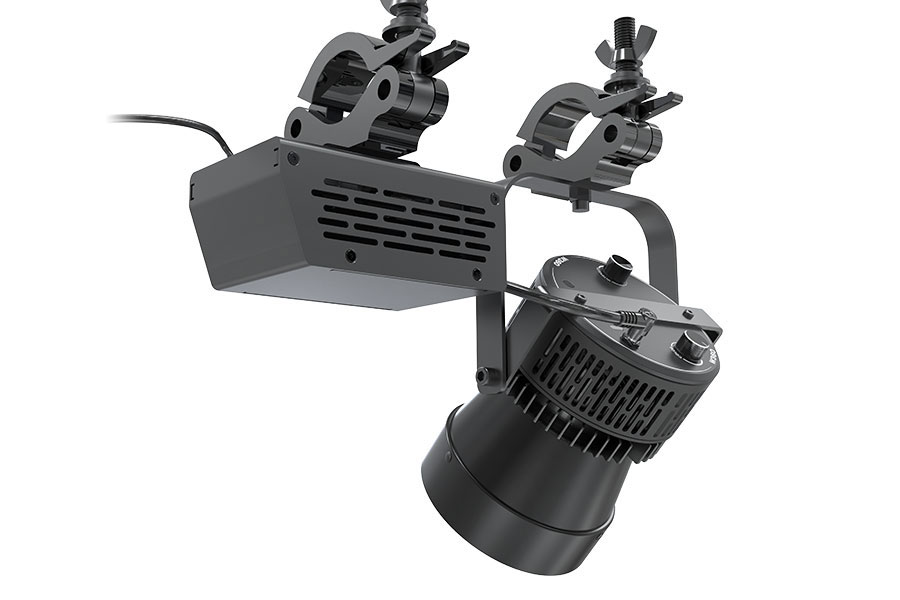

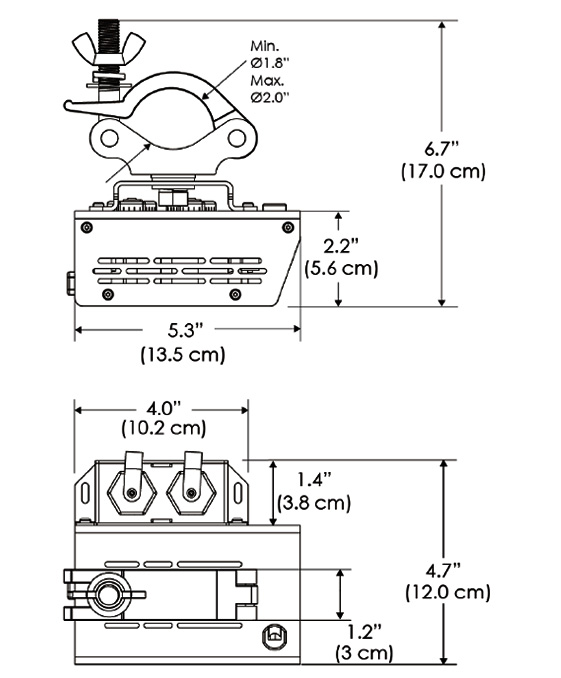

| W360S-CLP | PS |
|
 |
 | |
| Mounting Bracket Dimensions ALL-CLP *All -CLP configuration models come with standard DC cables of 6 inches and AC cables of 10 ft. |
 |
|

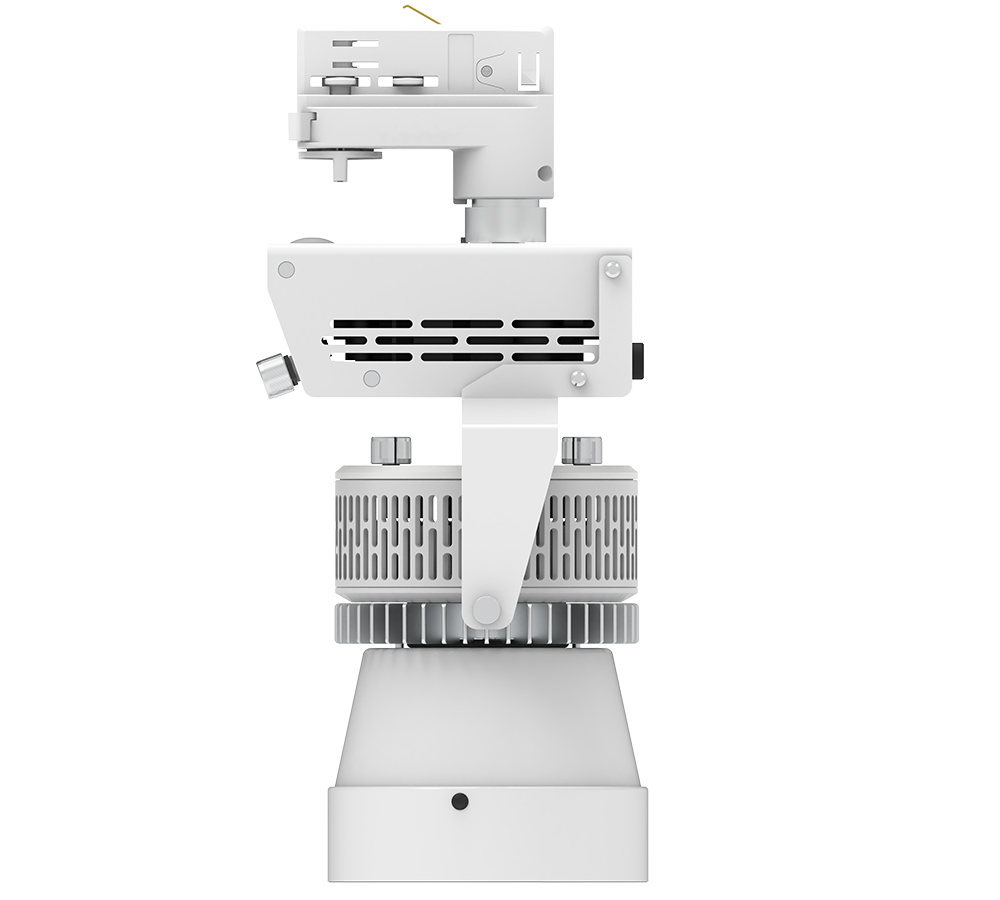

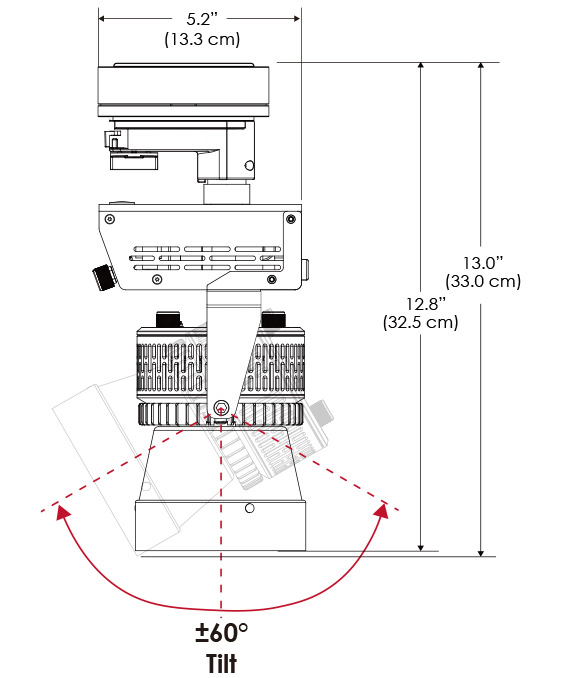

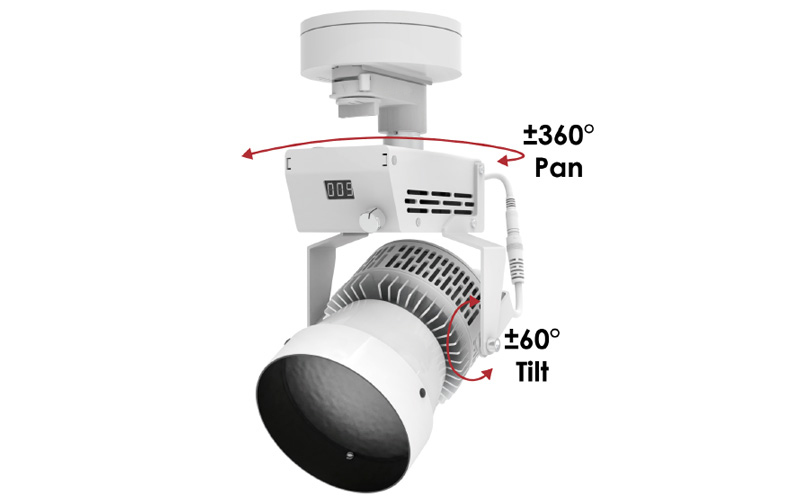

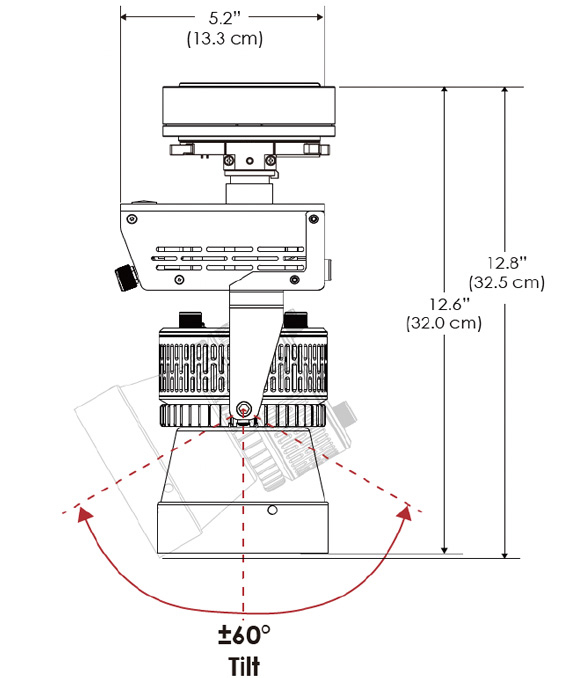

| W360S-MPT | PSX | PSX |
 |
 |  |
| W360S-TEX (legacy products) | PS | PSX |
 |
 |  |
| W360S-TG (legacy products) | PS |
|
 |
 | |
Separator

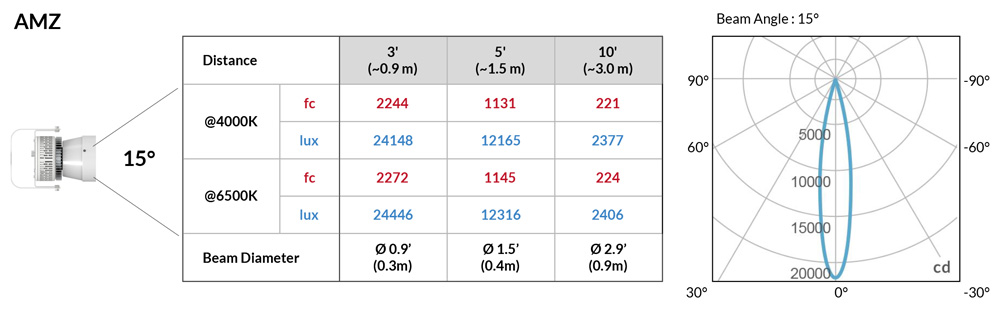

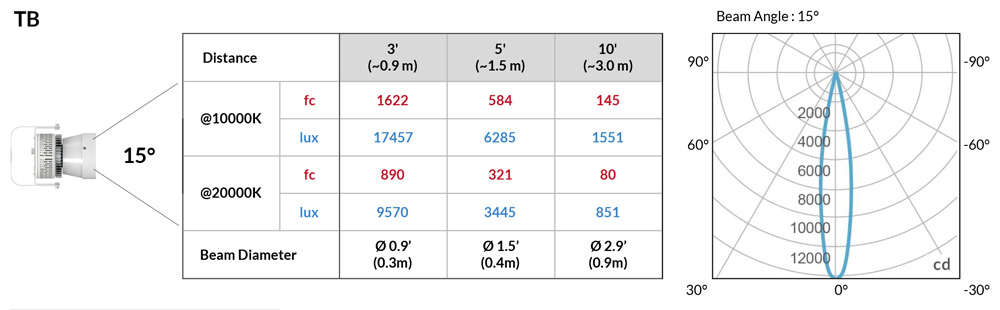

PHOTOMETRIC DATA
Separator
ITEMS INCLUDED
W360S-TOX / TON / CLP / TEX / TG Type
W360S fixture
PSU
W360S-MPT Type
W360S fixture + PSU
Monopoint Adapter
