Highest Intensity & Coverage
- 3X more irradiance per vial to increase reaction rate and yield
- 5X larger coverage for running multiple reactions in parallel
- 15X higher throughput compared to popular PR160L
Click here for the Intensity Maps - Safer, longer lifespan, less heat and more environmental friendly compared to conventional light sources
Programmable
- Run, Store, Edit programs directly on PR300 fixture or through PC software
- Sync multiple units through 0-10V cable
- LCD screen and control pad for quick settings
- Continuous 0-100% intensity levels for studying the functional relationship between intensity and yield
- Manual mode available for instant start and brightness adjustment
- Type A to Type C connectivity for easy data transfer
Finely Tuned Wavelengths

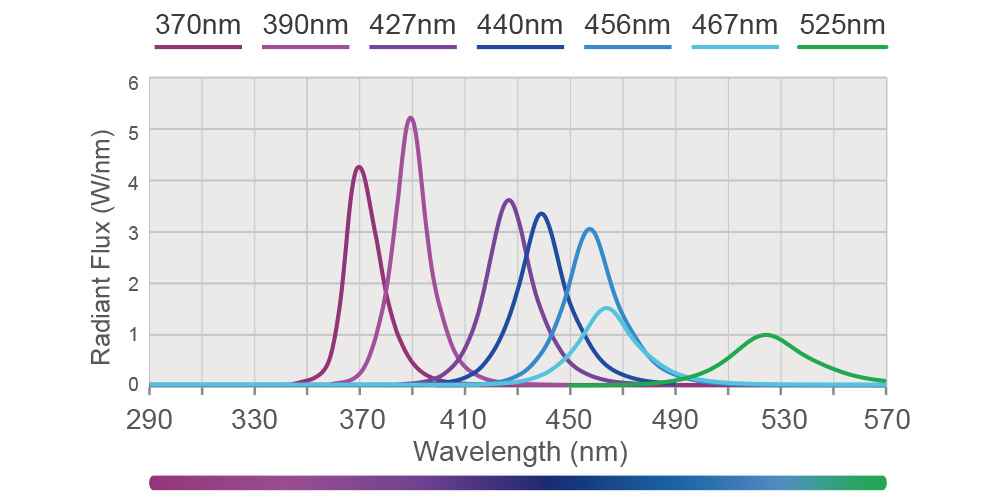

- Precise activation wavelengths available in 427nm, 440nm, 456nm, 467nm, 525nm. Please contact us for customized solutions
- Narrow spectrum to avoid unwanted side reactions
- Study in depth and optimize photocatalytic reactions to save time and cost
Optimized for Consistency & Reliability
- Reliable results and repeatable reactions, perfect for commercial setups
- Consistency between every unit
- Peak wavelength within ±1nm*
- Optical output within 3%*
*Standard Deviation
Flexibility & Safety
- Accommodates different configurations (vials, test tubes, flasks, coiled tubing, etc…)
- Add more PR300s to increase intensity and scale up experiments
- Glass cover protects LEDs from solvents and maximizes light penetration
- Easy to operate and mount with PR300 Shielding Box

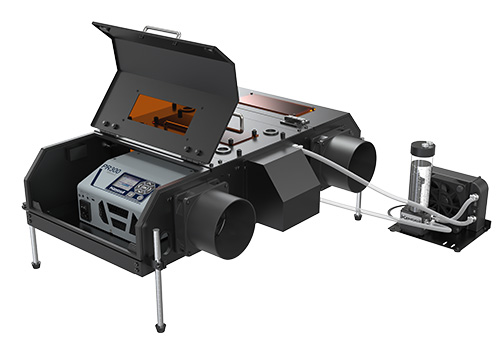

New PR300 Shielding Box
- Specifically designed enclosure turns system into a photoreactor with full protection and temperature monitoring
- Adjustability and secure mounting ensures accuracy and reproducibility
- Feedthrough for probes, liquid/gas lines for versatile reaction conditions
- Comes with a powerful fan to enhance cooling
Separator
Technical Specifications
| Power Consumption (AC) | MAX 340W |
| Input Voltage | 100 - 240 VAC |
| Operating Temperature | 0 - 40°C / 32 - 104°F |
| Cooling tank (PR300 protective glass to vial) | 20mm - 50mm |
| Wavelength Options | 427nm, 440nm, 456nm, 467nm, 525nm |
| Average Intensity of PR300 series (PR300 protective glass as starting point. ) | 442 mW/cm² measured at 12mm 407 mW/cm² measured at 20mm |
| Dimensions (W x L x H) | 7.9" x 9.3" x 4.5" / 20.0cm x 23.6cm x 11.5cm |
1x PR300
1x AC Power Cord
1x Service Link Cable (USB Type-A to Type-C)
1x 0-10V Unit Link Cable, 6 feet
What's in the Box
Separator
Ordering Information
PR300
–
Options
427427nm
440440nm
456456nm
467467nm
525525nm
We offer customized solutions in other wavelengths (400nm, 518nm, 595nm, 640nm, 660nm, 740nm, etc), please Contact us for more information
Separator
Compatible with
