KESSIL ACCESSORIES - MOUNTING

kessil Extended Slide Bar
kessil Extended Slide Bar
kessil Extended Slide Bar
  • kessil Extended Slide Bar
  • kessil Extended Slide Bar
  • kessil Extended Slide Bar

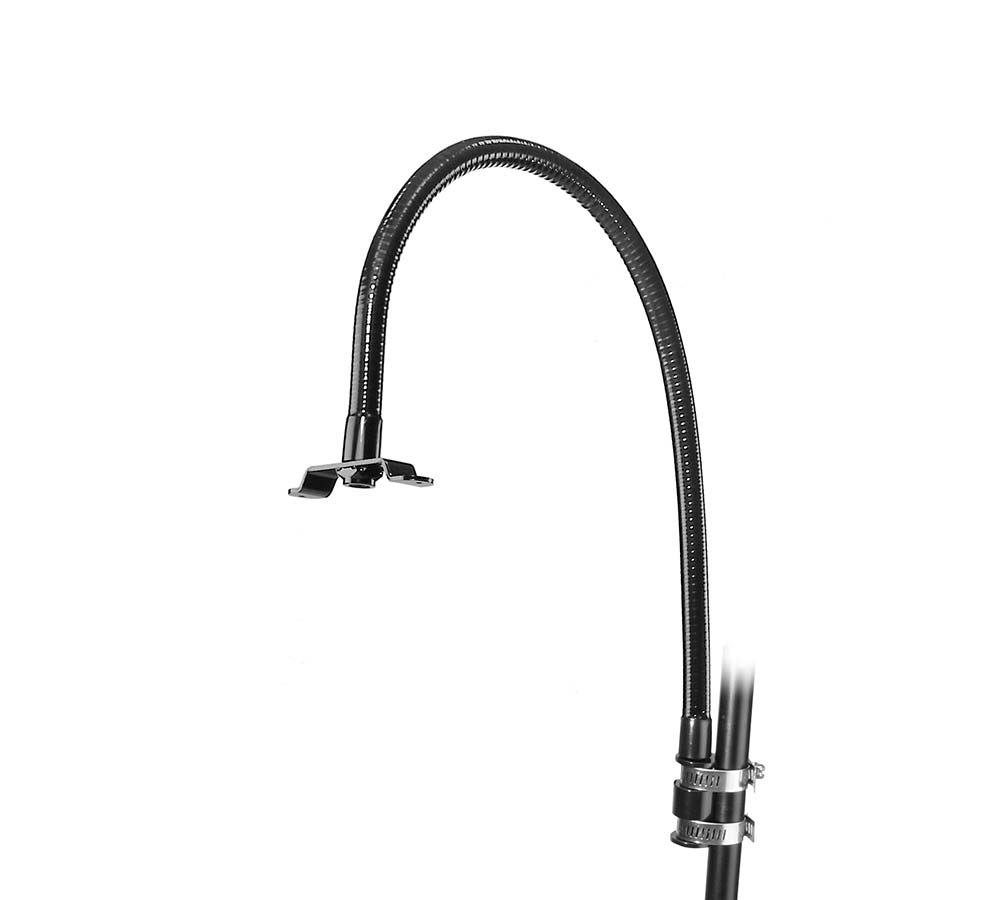

H-Series Gooseneck

  • Part Number

    KSHGN03

  • Weight

    1.6lb / 0.75kg

  • Dimensions

    ø 0.6" x H 23.6"

  • Product Information

    Overview

    Kessil's gooseneck mount helps deliver light where plants need it most. Designed to be installed on the posts of standard grow tents, its 24 in. long arm is flexible enough to be maneuvered into the desired position without interfering with existing setups.

    What's in the Box

    • Gooseneck Base (x1)

    • Clamp (x2)

    • Gooseneck (x1)

    • H3XX Bracket (x1)(H1XX Bracket included in the product)

    Compatible with

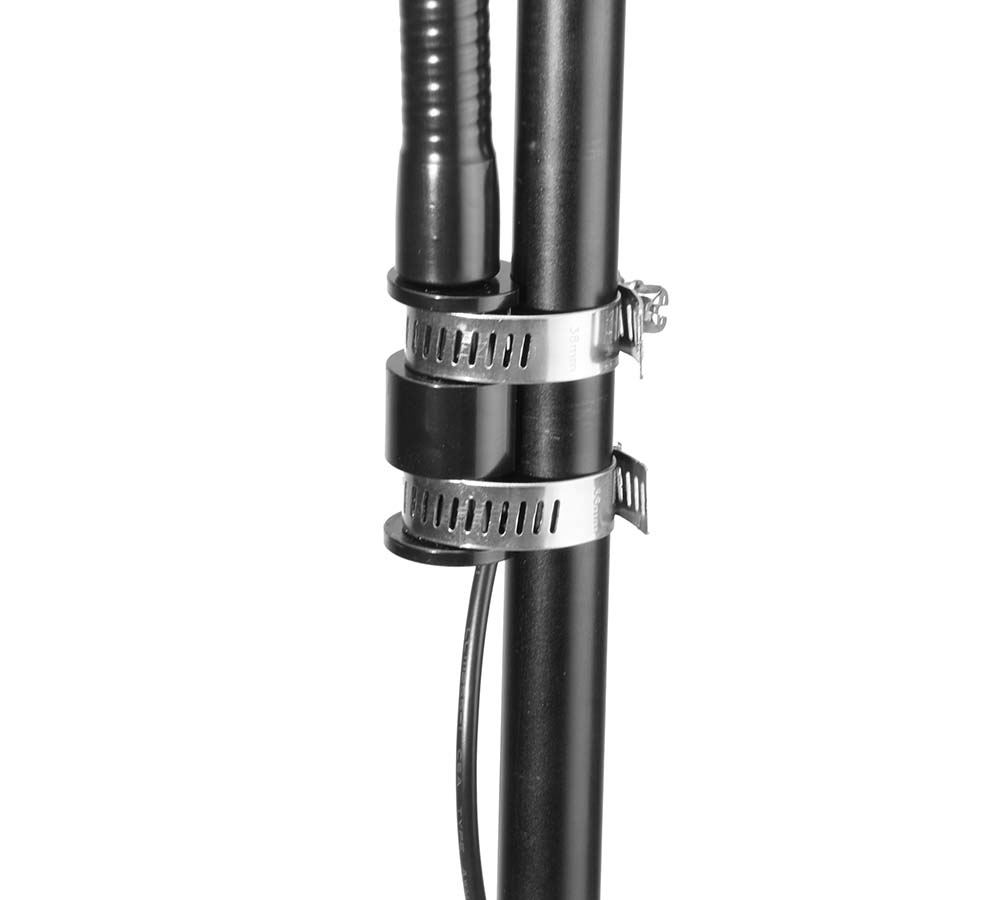

    (A) Gooseneck base attachment instructions

    A1

    Align concare side of gooseneck base with pole.

    A2

    Encircle clamps around gooseneck base and pole both.

    A3

    Tighten clamps with a screwdriver.

    A4

    Screw gooseneck into the gooseneck base.

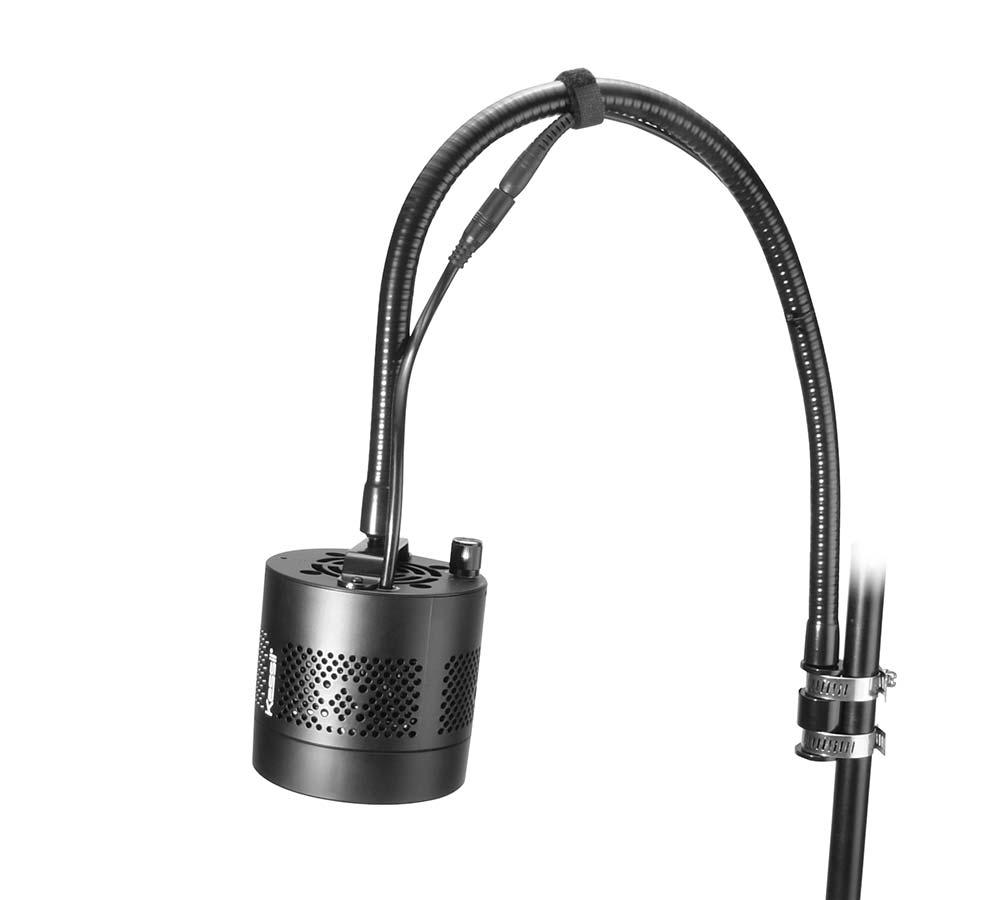

    (B) Unit attachment instructions

    B1

    Remove and reserve screws for step B2.

    B2

    Secure designated bracket to unit with screws from step B1.

    B3

    Screw gooseneck to attach the bracket.

    B4

    Connect the power supply and adjust gooseneck.
